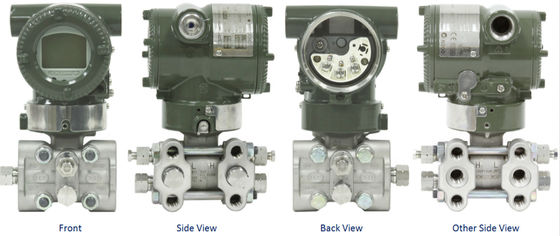

EJA130E Yokogawa Differential Pressure Transmitter

EJA130E-JHS4J-817EB/FF1/D4 Yokogawa EJA130E Differential Pressure Transmitter

Description:

Manufacturer : Yokogawa
Product No. : EJA130E-JHS4J-817EB/FF1/D4
Product type : EJA130E Differential Pressure Transmitter
Model : EJA130E - Differential pressure transmitter
Output signal : J - 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : H - 5 to 500 kPa (20 to 2000 inH2O)
Wetted parts material : S - Users must consider the characteristics of selected wetted parts material and influence of process fluids. Specifying inappropriate materials has the potential to cause seriuos damage to human body and plant facilities resulted from an unexpected leak of the corrosive process fluids.
Process connections : 4 - with 1/2 NPT female process connector
Bolts and nuts material : J - B7 carbon steel
Installation : 8 - Horizontal piping and right side high pressure
Amplifer housing : 1 - Cast aluminum alloy
Electrical connection : 7 - 1/2 NPT female, two electrical connections and a blind plug
Integral indicator : E - Digital indicator with the range setting switch (push button)
Mounting bracket : B - 304 SST 2-inch pipe mounting, flat type (for horizontal piping)
Factory Mutual (FM) : FF1 - FM Explosionproof Approval *1 Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA 250 Explosionproof for Class I, Division 1, Groups B, C and D, Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G, in Hazardous locations, indoors and outdoors (Enclosure: Type 4X) “FACTORY SEALED, CONDUIT SEAL NOT REQUIRED.” Temperature class: T6, Amb. Temp.: –40 to 60°C (–40 to 140°F)
Calibration units : D4 - M calibration (kgf/cm2 unit)
Weight : 6.8 Kg
Shipping weight : 10 Kg

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA130E is a differential pressure transmitter designed to work in a high static pressure environment.

The EJA130E is designed to measure accurately, transmit quickly, and do it reliably over time.

• Accurately: ± 0.055% Accuracy
• Reliably: ± 0.1% Stability per 10 years
• Quickly: 150 ms Response Time.
