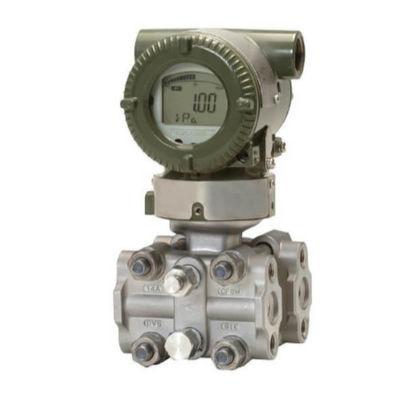

EJA310E Absolute Yokogawa EJA Pressure Transmitter Traditional Mount

EJA310E-DLS5J Yokogawa EJA310E Traditional-mount Absolute Pressure Transmitter

Description:

Manufacturer : Yokogawa

Product No. : EJA310E-JMS3J-712DB/KS21

Product Type : Absolute Pressure Transmitters

Output Signal : F = Digital communication (FOUNDATION Fieldbus protocol,

Measurement span (capsule) : A = 0.03 to 3 MPa {0.3 to 30 kgf/cm2}

Wetted parts material : S

Body : SCS14A

Capsule : SUS316L

Vent plug : SUS316

Process connections : 4 = with 1/2 NPT female process connector

Bolts and nuts materia : B

Maximum working pressure

SUS630

L capsule : 10 kPa abs {75 mmHg abs}

M capsule : 130 kPa abs {960 mmHg abs}

A capsule : 3 MPa abs {30 kgf/cm2 abs}

Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plug

Integral indicator : D = Digital indicator

Mounting bracket : D = SUS304 or SCS13A, 2-inch pipe mounting (L type)

Weight : 3.9 Kg

Shipping Weight : 5 Kg

EJA310E standard features include:

± 0.1% Accuracy
± 0.2% Stability for 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
3,600 psia Maximum Over Pressure (MWP)
Local Parameter Setting (LPS)

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
