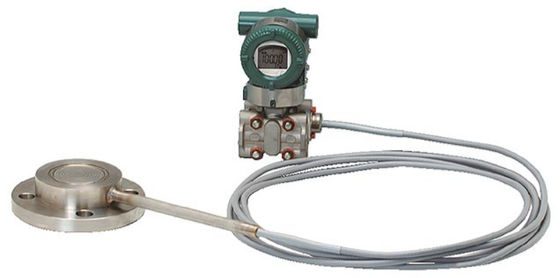

EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal

EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal

Description:

Manufacturer : Yokogawa

Product No. : EJA438E-DASCG-912DB-WJ13B2SW00-BA22

Product Type : Diaphragm sealed gauge pressure transmitter

Output signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol)

Measurement span (capsule) : A = 0.06 to 3.5 MPa (8.6 to 500 psi)

S : Always S

C : Always C

Coverflange bolts and nuts material : G = 316L SST

Installation : 9 = Horizontal piping type and left side high pressure

Amplifier housing : 1 = Cast aluminum alloy

Electrical connection : 0 = G 1/2 female, one electrical connection without blind plugs
Integral indicator : D = Digital indicator

Mounting bracket : A

Process connection style : W = Flush type

Flange rating : A1 = ANSI class 150

Process connection size (Process flange size) : 2 = 2-inch (50 mm)

Flange material : B = 304 SST

Gasket contact surface : 1 = Serration (for ANSI flange with wetted parts material SW only) Flat (no serration)

Wetted parts material : SW = [Diaphragm] = 316L SST, [Others] = 316L SST

Flushing connection ring : 0 = Ring = None, Vent/Drain plugs = -, Material = -

Extension : 0 = None

Fill fluid : A = Process temperature : For general use (silicone oil), Ambient temperature = –10 to 250°C –10 to 60°C

Capillary connection : A = Side of diaphragm seal unit

2 : Always 2

Capillary length : 7 = 7m

Weight : approx. 9.8 Kg

Shipping Weight : 11 Kg

EJA438E Standard features include:

± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation
