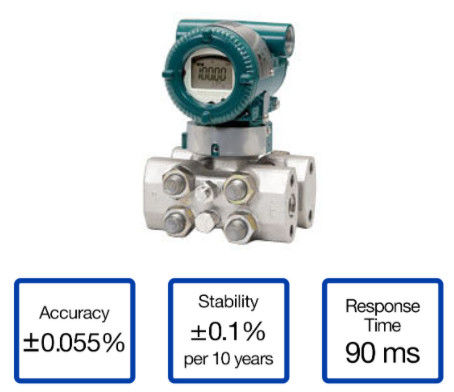

EJA440E Traditional Mount High Yokogawa Pressure Gauge EJA440E-JCS4J-917ED

EJA440E-JCS4J-917ED  EJA440E Traditional-mount High Gauge Pressure Transmitter

Description:

Manufacturer : Yokogawa
Product No. : EJA440E-JCS4J-917ED
Product type : EJA440E Gauge Pressure Transmitter
Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : C = 5 to 32 MPa (720 to 4500 psi)
Wetted parts material : S = F316 SST Cover flange, ASTM CF-8M *1 (C-capsule) 316 SST (D-capsule) Process connector, Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others), Teflon-coated 316L SST Capsule gasket, 316 SST Vent/Drain plug.
Process connections : 4 = with 1/2 NPT female process connector
Bolts and nuts materia : J = B7 carbon steel
Shipping weight : 8 Kg

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

EJA440E Standard features include:

• ± 0.055% Accuracy
• ± 0.1% Stability per 10 years
• 90 ms Response Time
• Exida and TUV SIL 2/3 Certified
• Local Parameter Setting (LPS)

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

Additional Informaiton:

EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter
