| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | carton |
| Delivery Period: | on request |
| Payment Method: | T/T |
| Supply Capacity: | 100+pc+on stock |

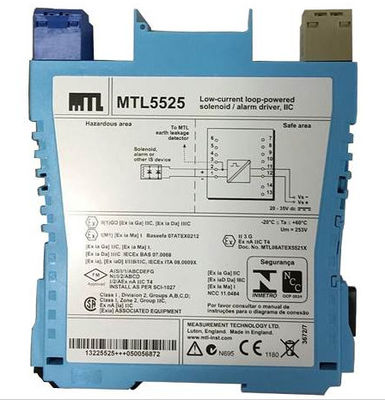

MTL5525 Low-Current loop-powered Solenoid /alam driver, IIC
The MTL5525 enables an on/off device in a hazardous area to be controlled by a volt-free contact or logic signal in the safe area.
It can drive loads such as solenoids, alarms, LEDs and other low power devices that are certified as intrinsically safe or are classified as nonenergy storing simple apparatus.
Number of channels : One
Location of load : Zone 0, IIC, T4–6 hazardous area if suitably certified Div.1, Group A, hazardous location.
Hazardous-area output
Minimum output voltage: 7.8V at 48mA
Maximum output voltage: 24V from 300?
Maximum off-state output voltage: 4V from 300?
Current limit: 48mA minimum
Output ripple < 0.5% of maximum output, peak-to-peak
Response time : Output within 10% of final value within 100ms
LED indicators
Green: power indication
Yellow: output status, on when output active
Maximum current consumption : 100mA at 24V dc
Power dissipation within unit
1.3W with typical solenoid valve, output on 1.9W worst case
Safety description Uo=25V Io=83.3mA Po=0.52W Um = 253V rms or dc
Shipping Weight : 1 Kg
