Differential Pressure Temperature Transmitters Honeywell SmartLine STD720 A2AC4AS

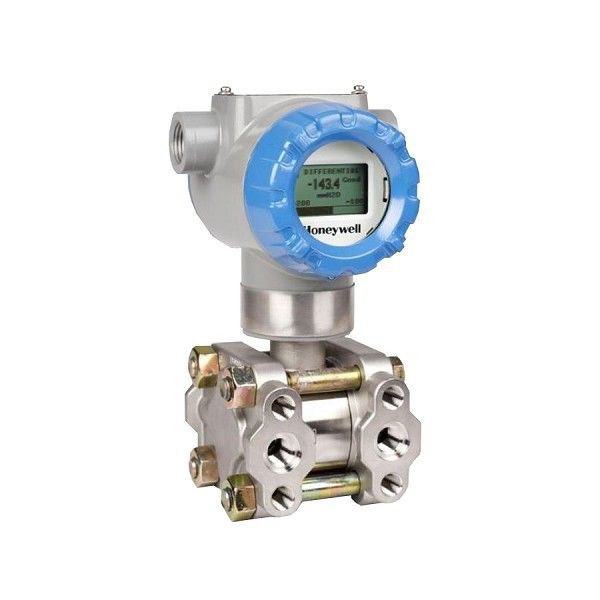

Honeywell SmartLine ​ST700 Differential Pressure Transmitter STD720-A2AC4AS

Manufacturer: Honeywell

STD720-A2AC4AS-1-A-AH0-11S-A-00A0-OX-0000

Model STD700

Differential Pressure Transmitter

Measurement Range

URL : 400/(1000)

LRL : -400/(-1000)

Max Span : 400/(1000)

Min Span : 4.0 (10)

Units : " H2O (mbar)

E-Process Head Material : 316 Stainless Steel

Diaphragm Material: 316L Stainless Steel

1-Fill Fluid : Silicone Oil 200

H-Process Connection : 1/2" NPT female

Diaphragm Material : Materials to Match Head & Head Bolt Materials Selections1

C-Bolt/Nut Materials : Carbon Steel

Head Type Vent Type Location

4-Head Type : Dual Ended, Vent Type : Standard Vent, Location: End , Vent Material : Matches Head Material1

A-Gasket Material : Teflon® or PTFE (Glass Filled)

S- Static Pressure : Standard Static Pressure - 4500 psig (315 bar)

1-Meter Body & Connection Orientation : Standard. High Side Left, Low Side Right2 / Std Head Orientation

A-Agency Approvals (see data sheet for Approval Code Details):FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof

B-TRANSMITTER ELECTRONICS SELECTIONS Material/Connection/Lightning Protection : Polyester Powder Coated Aluminum /M20/NONE

H-Analog Output/ Digital Protocol : 4-20mA dc / HART Protocol

S-Customer Interface Selections

1-Application Software : Standard Diagnostics

1-Write Protect : Disabled

Fail Mode : High> 21.0mAdc

High & Low Output Limits3 : Honeywell Std (3.8 - 20.8 mAdc)

S--General Configuration : Factory Standard

B--Accuracy :Standard, Calibrated Range: Custom (Unit Data Required),Calibration Qty: Single Calibration

1-Bracket Type /Material:Angle Bracket/ Carbon Steel

0-No customer tag

A0--No Conduit Plugs or Adapters Required

F1--Calibration Test Report & Certificate of Conformance (F3399)

0000--Manufacturing Specials : Factory Identification

Shipping Weight: 5 kg

Models:

STD800 SmartLine Differential Pressure

STD810

STD820

STD830

STD870

STG800 SmartLine Gauge Pressure

STG830/STG83L

STG840/STG84L

STG870/STG87L

STG88L

STG89L

STR800 SmartLine Remote Diaphragm Seals

STR82D

STR83D

STR84G

STR87G

STR84A

” STA800 & STA80L

Absolute Pressure Transmitters”

STA822

STA840

STA82L

STA84L

STA87L

STF800 Flange Mounted Liquid Level

STF828

STF832

STF82F

STF83F
