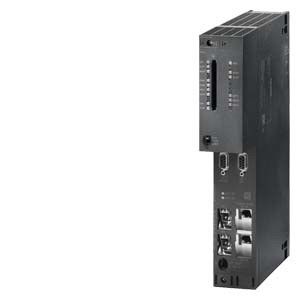

6ES7412-5HK06-0AB0 CPU412-5H PN/DP Central Processing Unit 1MB F. S7-400H/F/FH

6ES7412-5HK06-0AB0 CPU412-5H PN/DP, 1MB F. S7-400H/F/FH

General information

Product type designation CPU 412-5H PN/DP

HW functional status 1

Firmware version V6.0

Product function

● Isochronous mode No

Engineering with

● Programming package As of STEP 7 V5.5 SP2 with HF1

CiR - Configuration in RUN

CiR synchronization time, basic load 100 ms

CiR synchronization time, time per I/O byte 0 µs

Supply voltage

Rated value (DC) Power supply via system power supply

Input current

from backplane bus 5 V DC, typ. 1.6 A

from backplane bus 5 V DC, max. 1.9 A

from backplane bus 24 V DC, max. 150 mA; 150 mA per DP interface

from interface 5 V DC, max. 90 mA; At each DP interface

Power loss

Power loss, typ. 7.5 W

Memory

Type of memory RAM

Work memory

● integrated 1 Mbyte

● integrated (for program) 512 kbyte

● integrated (for data) 512 kbyte

● expandable No

Load memory

● expandable FEPROM Yes; with Memory Card (FLASH)

● expandable FEPROM, max. 64 Mbyte

● integrated RAM, max. 512 kbyte

● expandable RAM Yes

● expandable RAM, max. 64 Mbyte

Backup

● present Yes

● with battery Yes; all data

● without battery No

Battery

Backup battery

● Backup current, typ. 180 µA; Valid up to 40°C

● Backup current, max. 1 000 µA

● Backup time, max. Dealt with in the module data manual with the secondary conditions and the factors of influence

● Feeding of external backup voltage to CPU 5 V DC to 15 V DC

CPU processing times

for bit operations, typ. 31.25 ns

for word operations, typ. 31.25 ns

for fixed point arithmetic, typ. 31.25 ns

for floating point arithmetic, typ. 62.5 ns

CPU-blocks

DB

● Number, max. 6 000; Number range: 1 to 16000

● Size, max. 64 kbyte
