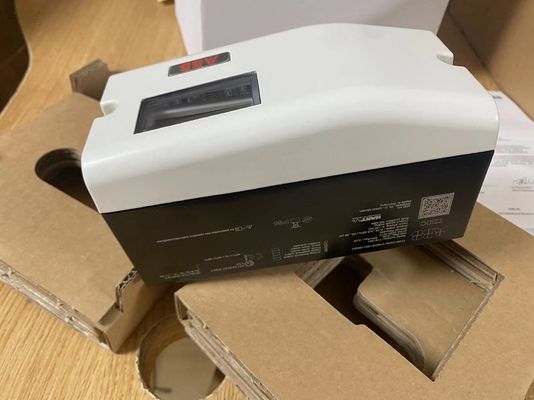

ABB TZID Electropneumatic Valve Positioner V18345-1010221001

ABB TZID Electro-Pneumatic Valve Positioner V18345-1010221001

ABB No. V18345-1010221001

ABB Series of TZIDC Intelligent, also known as “smart” positioners combines high accuracy, adaptable control functions and easy commissioning using the auto stroke functions. The TZIDC is idealy suited for both mounting on control valves using rotary actuators using standard Namur mounting hardware, but can also be used for linear control valves. Options include a gauge block, and analog/digital feed back.
The standard model TZIDC-100 ( V18345 ) comes with HART communication, and Profibus The TZIDC-110 ( V18346 ) Profibus the and TZIDC-120 ( V18347 ) with Fieldbus. The TZIDC can be set up for single and double acting actuators and fail safe (open or close) or fail freeze (hold last position)

Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.

The TZIDC can be used in general purpose and hazardous area with intrinsically barriers and FM/CSA and ATEX approvals are available.

The positioner has a built-in operating panel providing a 2-line LCD display and 4 operating buttons for commissioning, configuration and monitoring during live operation. Alternatively, the appropriate configuration program can be used via the available communication interface.

The TZIDCrepresents the digital, intelligent positioner for communication via HART within the TZIDC positioner family. Unmatched shock and vibration immunity of 10g up to 80 Hz distinguishes the TZIDC from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.

• Digital communication acc. to HART
• Easiest commissioning and operation on site due to local operation and auto adjustment
• Intrinsically safe (IS)
• Robust design and flexible in use with linear and rotary actuators

Valve positioner ABB (TZID-C) V18345-1011221001 (stock special products)
Valve positioner ABB (TZID-C) V18345-1010521001 (stock special products)
Valve positioner ABB (TZID-C) V18345-1010221001 (stock special products)
Valve positioner ABB (TZID-C) V18345-1010121001 (stock special products)
Valve positioner ABB (TZID-C) V18345-2020420001 (stock special products)
Valve positioner ABB (TZID-C) V18345-1017121001 (stock special products)
Valve positioner ABB (TZID-C) V18345-1027120001 (stock special products)
V18345-1010121001 single acting, fail-safe, with 4 ~ 20mA feedback on the two-wire connection 1/2-14NPT
V18345-1010221001 single acting, fail closed (c fault protection), with 4 ~ 20mA feedback on the two-wire connection 1/2-14NPT
V18345-1011121001 single acting, fail-safe, with 4 ~ 20mA Two-wire feedback, ib An explosion of benzene, the connection 1/2-14NPT
V18345-1017121001 single acting, fail-safe, with 4 ~ 20mA feedback on the two-wire, ia An explosion of benzene, the connection 1/2-14NPT
V18345-1027120001 single acting, fail-safe, no feedback, ia An explosion of benzene, with HART communication, connection 1/2-14NPT
V18345-1010520001 double action, fault latch (iii circuit protection), no feedback, connection 1/2-14NPT
V18345-1010421001 double acting, fail-safe, with 4 ~ 20mA feedback on the two-wire connection 1/2-14NPT
V18345-1010521001 double action, fault latch (iii circuit protection), with 4 ~ 20mA feedback on the two-wire connection 1/2-14NPT
V18345-1027420001 double acting, fail-safe, no feedback, ia An explosion of benzene, with HART communication, connection 1/2-14NPT
