|Lead Time:||In Stock||Part Number:||330130-045-02-05|
|Agency Approval:||Multiple Approvals||Manufacture:||BENTLY NEVADA|
|Certificate:||COO Test Report||Model Type:||3300 XL Standard Extension Cable|
|Cable Length:||045 - 4.5 Metres (14.8 Feet)||Connector:||02 - Standard Cable With Connector Protectors|
4.5m Bently Nevada Extension Cable,
Extension Cable 330130-045-02-05,
3300 XL Extension Cable

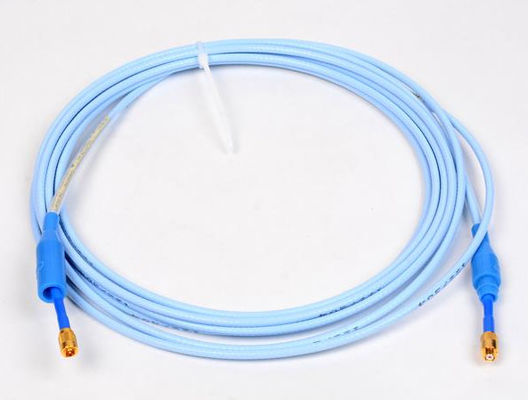

330130-045-02-05 3300 XL Standard Extension Cable
330130-045-02-05 Bently Nevada Extension Cable
Part Number: 330130-045-02-05
Model: 330130 - 3300 XL Standard Extension Cable
Cable Length Option: -045 - 4.5 metres (14.8 feet)
Connector Protector and Cable Option: -02 - Standard cable with connector protectors
Agency Approval Option: -05 - Multiple Approvals
Availability: In Stock
Estimated Lead Time: Usually Ships in 5 - 7 Working Days
Shipping Weight: 2 Kg
• Cable Length: 4.5 metres (14.8 feet)
• Connector Protector and Cable Option: Standard Cable with Connector Protectors
• Agency Approval Option: Multiple Approvals
Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
Extended Temperature Range Applications
Complete Interchangeability of Units and Cabling
Backwards Compatible with Other Non-3300 XL Series Transducer System Components
The GE / Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute's (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
3300 XL Proximitor Sensor Part Number Breakdown (Not included when sold from Artisan unless specified)
A: Total Length and Mounting Option
1 0: 1.0 metre (3.3 feet) system length, panel mount
1 1: 1.0 metre (3.3 feet) system length, DIN mount
1 2: 1.0 metre (3.3 feet) system length, no mounting hardware
5 0: 5.0 metre (16.4 feet) system length, panel mount
5 1: 5.0 metre (16.4 feet) system length, DIN mount
5 2: 5.0 metre (16.4 feet) system length, no mounting hardware
9 0: 9.0 metres (29.5 feet) system length, panel mount
9 1: 9.0 metres (29.5 feet) system length, DIN mount
9 2: 9.0 metres (29.5 feet) system length, no mounting hardware
B: Agency Approval Option
0 0: Not required
0 5: Multiple approvals
