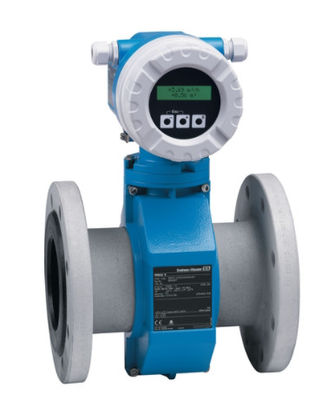

Proline Promag 10W Electromagnetic Flow Meter 80 Degree With Polyurethane Liner

Proline Promag 10W Electromagnetic Flow Meter 80 Degree With Polyurethane Liner

MOQ: 1
Standard Packaging: CARTON
Delivery Period: 8-10 WEEKS
Payment Method: T/T, D/P
Supply Capacity: 10000
Detail Information
Place of Origin
GERMANY
Brand Name
E+H
Model Number
10W1H-HC0A1AA0A4AA
Highlight:

10W Electromagnetic Flow Meter

,

80 Degree Electromagnetic Flow Meter

,

Polyurethane Liner E&H Instrument

Product Description
Detailed Product Description
Max. Measurement Error: ±0,5% O.r. ± 2 Mm/s (±0,5% O.r. ± 0,08 In/s) Measuring Range: 9 Dm3/min To 110 000 M3/h (2.5 Gal/min To 700 Mgal/day)
Medium Temperature Range: '0 To +80 °C (+32 To +176 °F), –20 To +50 °C (–4 To +122 °F) Max. Process Pressure: PN 40, Class 300, 20K
Wetted Materials: Liner: Polyurethane; Hard Rubber Origin: France
Model: 10W1H-HC0A1AA0A4AA Shipping Weight: 18kg
High Light:

Proline Promag E&H Instrument

,

Promag E&H Instrument

,

10W Endress Hauser Electromagnetic Flow Meter





Endress+Hauser Proline Promag 10W Electromagnetic flowmeter 10W1H



Flowmeter for basic water and wastewater applications with a highly cost-efficient transmitter
Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. Combined with the Promag 10 transmitter for basic applications and direct integration, Promag 10W offers accurate measurement of liquids for a wide range of applications. It will be the preferred solution for customers aiming for minimized cost of ownership. Promag 10W is available as compact or remote version.







Specs at a glance


Max. measurement error
±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s)

Measuring range
9 dm3/min to 110 000 m3/h (2.5 gal/min to 700 Mgal/day)

Medium temperature range
'0 to +80 °C (+32 to +176 °F), –20 to +50 °C (–4 to +122 °F)

Max. process pressure
PN 40, Class 300, 20K

Wetted materials
Liner: polyurethane; hard rubber





Benefits



Flexible engineering – sensor with fixed or lap-joint process connections
Reliable measurement – accurate measured values even with 0 x DN inlet run
Improved plant availability – sensor compliant with industry-specific requirements
Cost-effective – designed for easy applications and direct integration
Safe operation – display provides easy readable process information
Fully industry compliant – IEC/EN/NAMUR







Field of application


The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Suitable for elementary measurement tasks such as raw water intake
Device properties
International drinking water approvals
Degree of protection IP68 (Type 6P enclosure)
2-line display with push buttons
Device as compact or remote version
HART
