Allen Bradley PowerFlex 4 Variable Frequency Drive 22A-D4P0N104

Allen Bradley PowerFlex 4 Variable Frequency Drive 22A-D4P0N104
Allen Bradley PowerFlex 4 Variable Frequency Drive 22A-D4P0N104 Allen Bradley PowerFlex 4 Variable Frequency Drive 22A-D4P0N104 Allen Bradley PowerFlex 4 Variable Frequency Drive 22A-D4P0N104 Allen Bradley PowerFlex 4 Variable Frequency Drive 22A-D4P0N104 Allen Bradley PowerFlex 4 Variable Frequency Drive 22A-D4P0N104

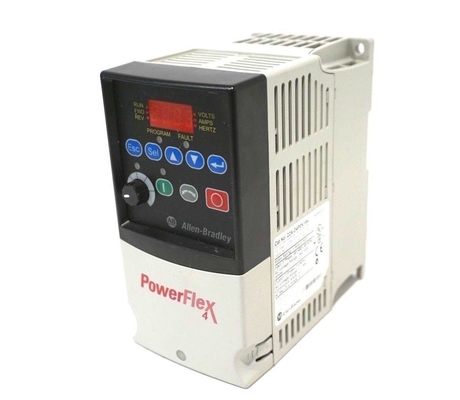

Large Image :  Allen Bradley PowerFlex 4 Variable Frequency Drive 22A-D4P0N104

Product Details:
Place of Origin: China
Brand Name: Allen Bradley
Model Number: 22A-D4P0N104
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100+pc+on stock
Detailed Product Description
Manufacturer: Rockwell Automation / Allen-Bradley Part Number: 22A-D4P0N104
Input Voltage:: 380-480VAC Input Phase:: 3-Phase
Rated Power:: 1.5kW (2.0 HP) Enclosure Type: IP20/UL (Open)
Rated Current Output:: 4.0 A Shipping Weight: 1.388 Kg
High Light:

Allen Bradley Variable Frequency Drive

,

PowerFlex 4 Variable Frequency Drive

,

480VAC Allen Bradley VFD Drives

Quick Detail of PowerFlex 4  Variable Frequency Drive
Manufacturer: Rockwell Automation / Allen-Bradley
Brand: Allen-Bradley
Part Number/Catalog: No. 22A-D4P0N104
Model Type: PowerFlex 4 Variable Frequency Drive
Input Voltage: 380-480VAC
Input Phase: 3-Phase
Rated Current output: 4.0 A
Rated Power: 1.5kW (2.0 HP)

Description oPowerFlex 4 Variable Frequency Drive

The 22A-D4P0N104 drive is an Adjustable Frequency AC drive from the PowerFlex 4 drive family. This electronic equipment is manufactured by Allen-Bradley to implement modulating speed in control for use in a wide variety of applications such as fan and pumps, as well as simple lifting applications as this drive is capable of Sensorless Vector control that allows speed and varying Torque control.


Specification of PowerFlex 4 Variable Frequency Drive

Electrical

Voltage Tolerance:
Frequency Tolerance:
Displacement Power Factor:
Maximum Short Circuit Rating:

120V, 200…240V, 380…480V, 460…600V: ±10%
48…63 Hz
0.98 across entire speed range
100,000 Amps symmetrical

Control Inputs

Digital
SRC (Source) Mode:
SNK (Sink) Mode:
Analog
4…20 mA Analog:
0…10V DC Analog:
External Pot:

Input Current = 6 mA
18…24V = On, 0…6V = Off
0…6V = On, 18…24V = Off
250 ohm input impedance
100k ohm input impedance
1…10k ohms, 2 Watt minimum

Control Output – Programmable
Outputs
(form C relay)

Resistive Rating
Opto Outputs:
Analog Outputs:
Inductive Rating
Opto Outputs:
Analog Outputs:

3.0A at 30V DC, 3.0A at 125V AC, 3.0A at 240V AC
30V DC, 50 mA
10-bit, 0…10V, 1k ohm minimum
0.5A at 30V DC, 0.5A at 125V AC, 0.5A at 240V AC
Non-inductive
10 bit, 4…20 mA, 525 ohm maximum

Fuses and Circuit Breakers

Recommended Fuse Type:
Recommended Circuit Breakers:

UL Class J, CC, T or Type BS88; 600V (550V) or equivalent.
HMCP circuit breaker or equivalent.


Protective Features

Motor Protection:
Overcurrent:
Control Ride Through:
Faultless Power Ride Through:

I2 t Overload Protection, 150% for 60 sec., 200% for 3 sec. (provides Class 10 protection)
200% hardware limit, 300% instantaneous fault
Minimum Ride Through is 0.5 sec. - typical value is 2 seconds
100 milliseconds


Dynamic Braking

Internal brake IGBT included with all ratings.

Environment

Altitude:
Storage Temperature:
Atmosphere:
Relative Humidity:
Shock (operating):
Vibration (operating):

1000 m (3300 ft.) maximum without derating
–40 to 85 degrees C (–40 to 185 degrees F)
Important: Drive must not be installed in an area where the ambient atmosphere contains volatile or
corrosive gas, vapors or dust. If the drive is not going to be installed for a period of time, it must be
stored in an area where it will not be exposed to a corrosive atmosphere.
0 to 95% non-condensing
15G peak for 11ms duration (±1.0ms)
1G peak, 5 to 2000 Hz

Control

Frequency Accuracy:
Speed Regulation:
Stop Modes:
Accel/Decel:
Intermittent Overload:
Electronic Motor Overload Protection:


Digital Input: Within ±0.05% of set output frequency.
Analog Input: Within 0.5% of maximum output frequency.
Analog Output: ±2% of full scale, 10-bit resolution.
Open Loop with Slip Compensation: ±2% of base speed across a 40:1 speed range. 1% of base speed
across a 60:1 speed range.
Multiple programmable stop modes including - Ramp, Coast, DC-Brake, Ramp-to-Hold and S Curve.
Two independently programmable accel and decel times. Each time may be programmed from 0…600
seconds in 0.1 second increments.
150% overload capability for up to 1 minute, 200% overload capability for up to 3 seconds.
Provides class 10 motor overload protection according to NEC article 430 and motor over-temperature
protection according to NEC article 430.126 (A) (2). UL 508C File 29572.



Feature of PowerFlex 4 Variable Frequency Drive

This drive features an integral RS-485 communication interface which allows for compatibility with PC tools. These PC tools can aid technicians in monitoring, troubleshooting, and programming the drive. These PC tools include Drive Explorer and DriveTools SP software. The 22A-D4P0N104 drive features powerful motor speeds and a space-saving design, making it ideal for machine level speed control. This drive features a 3-phase input voltage of 380 to 480 Volts AC, a 4 Amps power rating, and overall power dissipation of approximately 70 Watts of power. Additionally, the 22A-D4P0N104 module produces an output of 2 Horsepower or 1.5 kW.
