Manufacturer : MTL Instruments
Product No. : MTL5531
Product Type : Vibration Transducer Interface
Number of channels : One
Sensor type : 2- or 3-wire vibration transducer
Location of signal source : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
Hazardous-area input : Input impedance (terminals 2 & 3): 10k?
Transducer supply current, 2-wire : 3.3mA (nom.) for 2-wire sensors, user selectable by switch
Signal range : Minimum –20V, maximum –0.5V
DC transfer accuracy at 20°C : <±50mV
LED indicator : Green = power indication
Supply voltage : 20 to 35V dc
Maximum current consumption (10mA transducer load) : 65mA at 24V
Maximum power dissipation within unit : 1.33W
Weight : 0.11 Kg

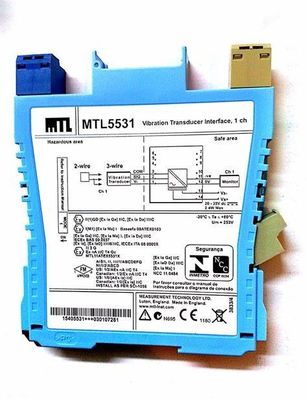

MTL 5531 repeats a signal from a vibration sensor in a hazardous area, providing an output for a monitoring system in the safe
area. The interface is compatible with 3-wire eddy-current probes and accelerometers or 2-wire current sensors; the selection is
made by a switch on the side of the module.
| Sensor type | 2- or 3-wire vibration transducer |
| Location of signal source |
Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location |
| Hazardous-area input |
Input impedance (terminals 2 & 3): 10kΩ |
| Transducer supply current, 2-wire | 3.3mA (nom.) for 2-wire sensors, user selectable by switch |
| Signal range | Minimum –20V, maximum –0.5V |
| DC transfer accuracy at 20°C | <±50mV |
| AC transfer accuracy at 20°C |
0Hz to 1kHz: ±1% 1kHz to 10kHz: –5% to +1% 10kHz to 20kHz: –10% to +1% |
| Temperature coefficient |
±50ppm/°C (10 to 65°C) ±100ppm/°C (–20 to 10°C) |
| Voltage bandwidth | –3dB at 47kHz (typical) |
| Phase response |
<14µs, equivalent to: –1° at 200Hz –3° at 600Hz –5° at 1kHz –50° at 10kHz –100° at 20kHz |
| Safe-area output impedance | <20Ω |
| Supply voltage | 20 to 35V dc |
| Safety description |
Terminals 3 to 1 Uo=26.6V Io=94mA Po=0.66W Um = 253V rms or dc Terminals 3 to 2 Non-energy-storing apparatus ≤1.5V, ≤0.1A and ≤25mW |
| Note |
Refer to the Instruction Manual for recommendations on mounting of these modules. Due to the high power dissipation the maximum ambient temperature for these modules when mounted in horizontal orientation is: • close packed 45°C • minimum of 10mm spacing 55°C |
