| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | carton |
| Delivery Period: | on request |
| Payment Method: | T/T |
| Supply Capacity: | 100+pc+on stock |

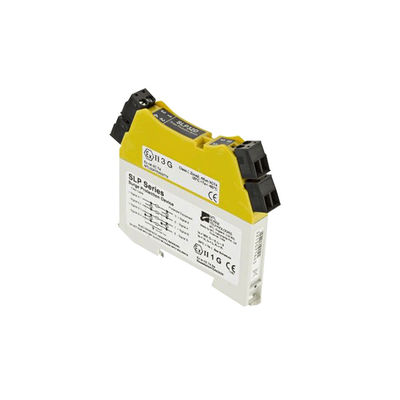

MTL SLP32D Surge Protection Device
Manufacturer : MTL Instruments
Product no : SLP32D
Product type : Surge Protection Device (SPD)
SLP Series
Cost effective surge protection for digital and analogue I/O
Surge protection for two loops per
SLP (or one 4-wire circuit)Range of ATEX Certified intrinsically
Safe surge protectors
Multi-stage hybrid protection circuit 20kA maximum surge current
Range of voltage ratings to suit all
Process I/O applications
Designed for high bandwidth, low
Resistance applications
Shipping Weight : 2 kg
The SD range is a series of surge protection devices combine unparalleled packing densities, application versatility, proven reliable hybrid circuitry, simple installation and optional‘loop disconnect’facilities – features which make the range the ultimate surge protection solution for process equipment, I/O systems and communications networks.
| Maximum surge current | 20kA (8/20µs waveform) per line |
| Leakage current | <1µA @ working voltage |
| Maximum rated load current | 1.50A |
| Loop resistance | 2 ohm |
| Capacitance | Line to Line: 60pF |
| Attenuation |
–0.1db @ 9kHz - 37MHz –3dB @ 50MHz |
| Response time | <1ns |
| Ambient temperature |
Working & Storage -40 to +80°C/-40 to +176°F |
| Humidity | 5 to 95% RH (non-condensing) |
| Terminals | 2.5mm (12 AWG) |
| Electrical connections | Plug/header screw terminal strip |
| Mounting | T-section DIN-rail (35 x 15mm rail) |
| Weight | 5oz (140g approximately) |
| Case flammability | UL94-V0 |
| EMC compliance |
BS EN 60950-1:2006+A12:2011 BS EN 61326-1:2006 BS EN 61010-1:2010 |
