Proline Promag PTFE Liner Electromagnetic Flowmeter 5P2B1F-AAACCAEA1K0A

Proline Promag PTFE Liner Electromagnetic Flowmeter 5P2B1F-AAACCAEA1K0A​

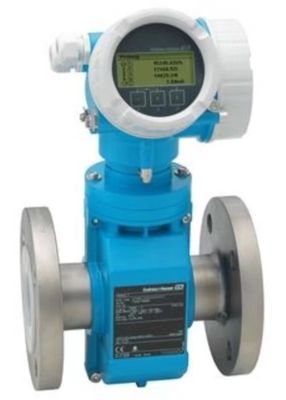

5P2B1F-AAACCAEA1K0A Proline Promag P 200 Electromagnetic Flowmeter

Model:5P2B1F-AAACCAEA1K0A
Approval:   AA   Non-hazardous area
Output:   A   4-20mA HART
Display; Operation:   C   SD02 4-line; push buttons + data backup function
Housing:   C   GT20 dual compartment, alu, coated
Electrical Connection:   A   Gland M20
Liner:   E   PTFE
Process Connection:   A1K   Cl.150, carbon steel, flange ASME B16.5
Electrodes:   0   1.4435/316L
Calibration Flow:   A   0.5%
marking
HS-Code: 90261021
Country of origin: FR
Country of dispatch: FR


Specs at a glance

Max. measurement error
Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)

Measuring range
4 dm3/min to 1100 m3/h (1 to 4850 gal/min)

Medium temperature range
Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

Max. process pressure
PN 40, Class 300, 20K

Wetted materials
Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum

Field of application
Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With genuine loop-powered technology, Promag P 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology ensures process safety at all times.

• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

• Dedicated to chemical and process applications with corrosive liquids and high medium temperatures

Device properties

• Nominal diameter: max. DN 200 (8")
• All common Ex approvals
• Liner made of PTFE or PFA
• Loop-powered technology
• Robust two-chamber housing
• Plant safety: worldwide approvals (SIL, Haz. area)

Benefits

• Versatile applications – wide variety of wetted materials
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Convenient device wiring – separate connection compartment
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology
