| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | standard carton packing |
| Delivery Period: | on request |
| Payment Method: | T/T |
| Supply Capacity: | 0-1000pcs |

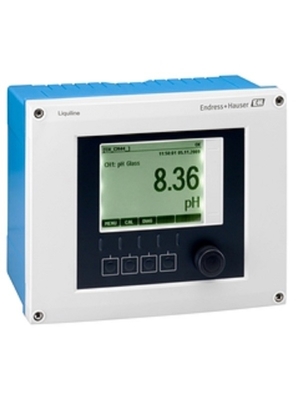

HART 4 Channel Transmitter Liquiline CM444 Enclosed Cable Entry
CAM21A3FG11BAA 4-Channel Transmitter Liquiline CM444
Model:CAM21A3FG11BAA
Approval: CA CSA C/US General Purpose
Sensor Input: M2 2x digital sensor
Digital Communication: 1 HART
Analogue Output: A3 4x 0/4...20mA
Additional Features: FG 2x digital input, 2x digital output
Power Supply: 1 100...230VAC (50/60Hz)
Cable Entry Housing: 1 NPT
Female Jack Fieldbus Communication: BA W/o
Cable Entry Set: A Enclosed
HS-Code: 90278930
Country of origin: DE
Country of dispatch: DE
Liquiline CM444 is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.Liquiline transmitters with Heartbeat Technology offer status-oriented maintenance and easy verification of the measuring point and help you to carry out optimization measures.Stay flexible with the Liquiline CM444 transmitter: its modular design allows you to easily add functionality at any time (e.g. digital fieldbuses, number of channels, relays, etc.).
Specs at a glance
Input
1 to 4x Memosens digital input
2x 0/4 to 20mA Input optional
2 to 4x Digital input optional
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay,
4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
Ingres protection
IP66 / IP 67
Field of application
The Liquiline CM444 transmitter allows you to connect up to 4 Memosens sensors of your choice from over 12 measurement parameters. It offers automatic sensor recognition, flexible expandability, and standardized spare parts with all other devices of the Liquiline platform. With its inputs, outputs, controllers, and math modules, you can even control cleaning systems or dosing pumps. Heartbeat Technology helps you find the ideal balance between measuring point availability and maintenance costs.
It features the following communication protocols and interfaces:
The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.
Benefits
Clever simplicity:
One controller for all parameters and applications, intuitive user interface, automatic sensor recognition, hot plug & play with pre-calibrated Memosens sensors.
Highest flexibility:
Universal modules for all parameters minimize spare part stock and allow for easy 1-click extension to up to 8 channels at any time.
Seamless system integration:
Unique portfolio of communication standards suits every distributed control system (DCS).
Simple and safe commissioning:
Saving configuration on SD card enables fast set-up on duplicate installations.
Process control from a distance:
Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.
Higher availability, lower costs:
Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.
Common related models:
| FTL31-AA4M3AAWBJ+HD |
| FTL33-AA4U3ABWSJ |
| FTL33-AA4W3ABWSJ |
| FQR56-AAEAAXFA1 |
| FDR56-AA1EAAXFA1 |
| FTI51-HAA1GCJ83A1A |
| FTL50-KGN2AA4F5A |
| FXA195-G1 |
| FDU90-RN2AA |
| DTT31-A1C111AB2BAB |
| 50106097 |
| 50098301 |
| PMP11-AA1U1PBWJJ |
| CM42-MEA001EAZ00 |
| CPS71D-7TB2G |
| CYK10-G051 |
| CLS50D-GR5D71, 40 m |
| CM442-CAM1A2F010A+AK |
| COS61D-AAA1A4 |
| FTL31-AA1U3AAWDJ |
Frequently Asked Questions:
1. Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A:One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
|
|
