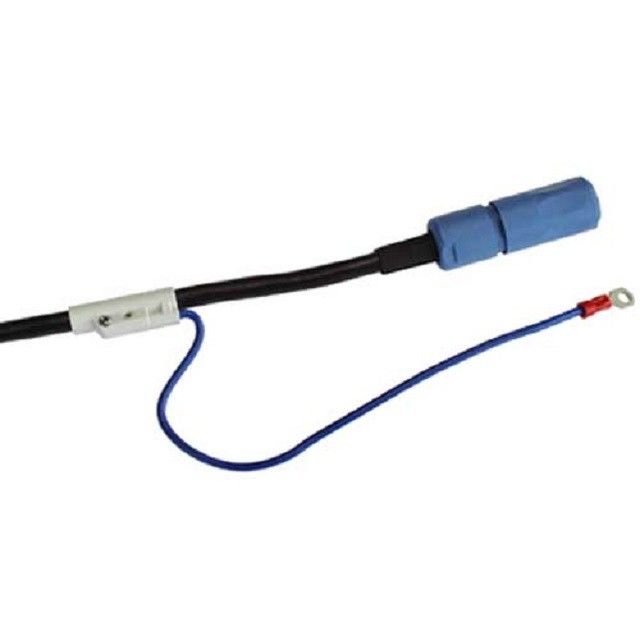

CPK9-HAA1A Measuring Cable CPK9
Cable Length; Sheath: HA 5m; TPE; max. 130oC
Application; Colour: A Non-hazardous area; black
Connection: 1 Wire terminals
Potential Match Connection: A Externally, flat connector
Application: Top68-plug head, IP68 MEMA6
1 Electrode plug.
Diameter: 7.2mm
Predecessor
CPK7
Measuring principle
Amperometric oxygen measurement
Application
IP68 Plug-in-head measuring cable.
Installation
For sensors with TOP68 plug-in head. Wire terminals to connect to the transmitter.
Measurement range
Insulation resistence (coax) : >100TeraOhm/mCapacitance (coax) : <100 pF/m
Design
TOP68 plug-in head for easy and safe exchange of sensors with gold pin and IP68 thread.
Designed for standard or high temperature applications.
Material
Cable sheat : Standard : PVC High temperature : TPEInner Conductor/control lines : copper, tin-coated.
Dimension
Diameter: 7,2mm
Process temperature
Standard: -25°C ... 80°C (-9°F - 176°F)
High temperature: 0°C ... 130°C (32°F - 266°F)
Temperature sensor
For sensors with and without temperature sensor.
