Product Details:
Payment & Shipping Terms:
|
| Accuracy: | (Pt100, -50...200 °C) <= 0,1 K | Measuring Principle: | Head Transmitter |
|---|---|---|---|
| Input: | 2 X RTD, TC, Ohm, MV | Output: | 1 X Analog 4...20 MA / HART |
| Communication: | HART-protocol | Auxiliary Power Supply: | 11...42 V DC (head Transmitter) |
| High Light: | TMT82-AAA1CD2TRTRA2,accurate Temperature Transmitter |
||

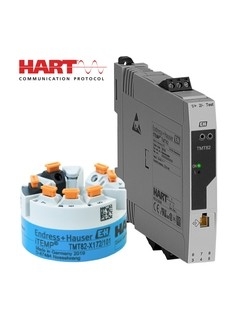

iTEMP TMT82 7 temperature transmitter TMT82-AAA1CD2TRTRA2
Galvanic isolation |
Yes |
Accuracy |
(Pt100, -50...200 °C) <= 0,1 K |
Communication |
HART-protocol |
(Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F
The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.
Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL
2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol
Suited for use in marine applications
Installation in explosion proof field housings;
Protection class up to IP 68
Fits in flat-face terminal heads as per DIN EN 50446
Cabinet or DIN rail mounting; width: 17.5 mm
Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability
SIL certification up to SIL2, SC3 according to IEC 61508:2010
Versatile mounting and housing options:
terminal head form B, DIN rail, field housing with separate terminal compartment, integrated display (TID10)
Transmitter-sensor matching for highest measurement accuracy
Sensor and hardware failure detection; diagnostic status information
according to NAMUR NE 107
Time-saving installation: Tool-free wiring with push-in terminal technology
