| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | Original packing |
| Delivery Period: | On request |
| Payment Method: | T/T |
| Supply Capacity: | 500pcs/month |
Absolute And Gauge Pressure Cerabar PMC51 PMC51-7901/101
Material process membrane |
Ceramic |
Measuring cell |
100 mbar...40 bar |
Supply voltage |
4...20 mA HART |
Standard 0.1%
Platinum 0.075%
-20°C...130°C
(-4°F...266°F)
100 mbar...40 bar
(1.5psi...600psi)
60 bar (900 psi)
Ceraphire
Sealing
Alloy C276
316L
400 m (1312 ft) H2O
Ceramic
100 mbar...40 bar
(1.5 psi...600 psi)
relative/ absolute

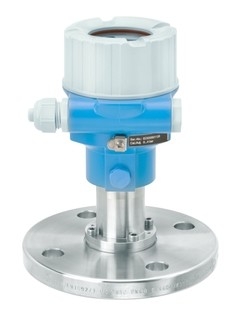

The Cerabar PMC51 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.
Single chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
Measuring ranges: -1/0 up to +40bar (-15/0 to +600psi)
Accuracy: ±0.1%, "Platinum" ±0.075%
International explosion protection certificates, SIL, hygienic approvals, marine approvals
Best fit for vacuum applications and applications with corrosive and abrasive media
Process safety through membrane breakage detection
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
Condensation resistant also for hygienic applications
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Process pressure up to SIL2, certified to IEC 61508 and IEC 61511

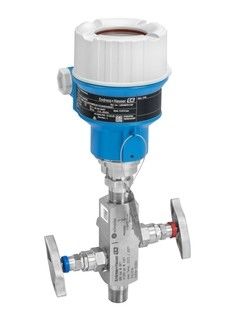

Available with mounted manifolds: always fit, always tested for leaks
|
|
