Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1

Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 5000pcs/month
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
5H3B65-AAIBAEAFAAFDASGAA1
Volume Flow (standard):
±0.5 % O.r.± 1 Mm/s (0.04 In/s)
Measuring Range:
0.06 Dm³/min To 600 M³/h (0.015 Gal/min To 2 650 Gal/min)
Medium Temperature Range:
–20 To +150 °C (–4 To +302 °F)
Max. Process Pressure:
PN 40, Class 150, 20K
Measuring Principle:
Electromagnetic
Nominal Diameter Range:
DN 2 To 150 (¹⁄₁₂ To 6")
Highlight:

rohs e&h mag flow meter

,

picomag e&h mag flow meter

,

h 300 picomag flow meter

Product Description

Proline Promag H 300 electromagnetic flowmeter 5H3B65-AAIBAEAFAAFDASGAA1

Max. process pressure

PN 40, Class 150, 20K

Medium temperature range

–20 to +150 °C (–4 to +302 °F)

Sensor housing material

1.4301 (304), corrosion resistant

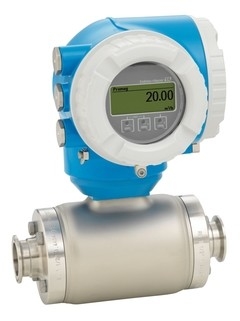

Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1 0Proline Promag H 300 E&H Mag Flow Meter 5H3B65-AAIBAEAFAAFDASGAA1 1



Specs at a glance

  • Max. measurement error

    Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
    Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

  • Measuring range

    0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)

  • Medium temperature range

    –20 to +150 °C (–4 to +302 °F)

  • Max. process pressure

    PN 40, Class 150, 20K

  • Wetted materials

    Liner: PFA
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
    Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
    Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
    Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

Field of application

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its compact transmitter Promag H 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures compliance and process safety at all times.


  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated to demanding applications in the food and beverage as well as in life sciences industries

Device properties

  • Liner made of PFA

  • Sensor housing made of stainless steel (3A, EHEDG)

  • Wetted materials CIP, SIP cleanable

  • Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os

  • Backlit display with touch control and WLAN access

  • Remote display available

Benefits

  • Flexible installation concept – numerous hygienic process connections

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Maintenance-free – no moving parts

  • Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses

  • Reduced complexity and variety – freely configurable I/O functionality

  • Integrated verification – Heartbeat Technology
