| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | Original packing |
| Delivery Period: | On request |
| Payment Method: | T/T |
| Supply Capacity: | 5000pcs/month |

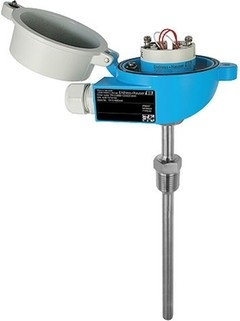

TR10 Modular RTD thermometer TR10-UBD1BHS1K3000
Optional coating |
Not defined |
Surface roughness Ra |
Not defined |
Max. process pressure (static) |
at 20 °C: 75 bar (1088 psi) |
class A acc. to IEC 60751
class AA acc. to IEC 60751
depending on configuration
at 20 °C: 75 bar (1088 psi)
PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
up to 10.000,00 mm (393,70'')
The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
Universal range of application
Measuring range: -200 to +600 °C (-328 to 1112 °F)
Pressure range up to 75 bar (1088 psi)
Degree of protection: up to IP68
Vibration-resistant sensor elements up to 60g
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter from overheating
Fast response time with reduced/tapered tip form
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), non-sparking (Ex nA)
Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
|
|
