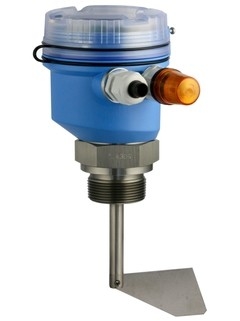

3" Point Level Switch Soliswitch FTE20 Rotary Paddle Switch FTE20-BI13AA11

MOQ:	1pcs
Price:	Negotiable
Standard Packaging:	Original packing
Delivery Period:	On request
Payment Method:	T/T
Supply Capacity:	5000pcs/month

Details Information

Product Description

Detail Information

Place of Origin

Brand Name

Endress Hauser

Certification

Model Number

FTE20-BI13AA11

Measuring Principle:

Paddle

Specialities:

Rotation Monitoring System Fold-away Paddle

Ambient Temperature:

-20 °C ... 60 °C (-4 °F ... 140 °F)

Process Temperature:

-20 °C ... 80 °C (-4 °F ... 170 °F)

Process Pressure / Max. Overpressure Limit:

0.5 Bar To 1.5 Bar (7 Psi ... 22 Psi)

Main Wetted Parts:

1.4305

Highlight:

3" point level switch

3" soliswitch

3" rotary paddle switch

Product Description

Point level switch Soliswitch FTE20 Rotary paddle switch FTE20-BI13AA11

Max. tensile strength	Rope version >1500N
Components	HAW569 Surge arrester
Sensor length	75 mm (3")

3" Point Level Switch Soliswitch FTE20 Rotary Paddle Switch FTE20-BI13AA11 0

Specs at a glance

Process temperature

-20 °C ... 80 °C (-4 °F ... 170 °F)
Process pressure / max. overpressure limit

0.5 bar to 1.5 bar (7 psi ... 22 psi)
Min. density of medium

>= 80 g/l

Field of application

The economical Soliswitch FTE20 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized polymers make the unit outstandingly robust and therefore suitable for use in dust explosive areas according the latest standards.

Process connections: NPT 1½", PBT; NPT 1¼", PBT; G 1½", PBT; NPT 1½", 1.4305; NPT 1¼", 1.4305; G 1½", 1.4305
Sensor length: Different standard lengths between 100 mm (4") and 600 mm (24"), additional rope length of 2000 mm (80") (can be shortened)
Medium temperature: -20 to +80 °C (-4 to +170 °F)
Process pressure range (absolute): 0.5 to 2.5 bar (7 to 36 psi)
ATEX II 1/3 D, CSA DIP/ II, III/1/E-G, FM DIP/ II, III/1/E-G

Benefits

Safety comes first - Overfill prevention with an automatic rotation monitoring system
Optical rotation control for a fast and easy check either for installation or for trouble shooting
Extremely robust polymer housing with the latest dust Ex certification for ATEX, FM and CSA
Cost savings over the whole life cycle:
Fast order process due to E-direct
Quick installation
Fast trouble shooting concept without the need of demounting
Best price performance ratio in the market
Adjustment to weight of solids without the need for tools
Housing can be rotated 360° to enable optimal alignment following installation.
