Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 5000pcs/month
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
CPA474-A2A2C3G7
Assembly:
Manual
Application; Actuator::
Max. 130oC 10bar; Stainless + Tape Wiper
Electrode Type:
Glass Electrode + ISFET, Gel
Electrode Holder; Ball Valve:
PVDF; PVDF; 130oC.
Seal:
FFKM / Kalrez
Highlight:

Automatic Retractable Assembly

,

Manual Retractable Assembly

Product Description

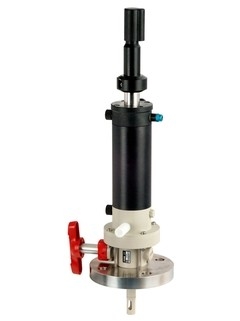

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7






Process Connection Flange DN50 PN16
Equipment, in-/outlet safty cleaning connection G1/4
HS-Code 90279000

Manual Or Automatic Retractable Assembly Cleanfit CPA474 CPA474-A2A2C3G7 0

Specs at a glance

  • Process temperature

    PA version: max. 80 °C (max. 176 °F)
    Stainless steel pressure cylinder: max. 120 °C (248 °F)

  • Process pressure

    PA pressure cylinder: max. 6 bar (87 psi)
    Stainless steel pressure cylinder: max. 10 bar (145 psi) at 40 °C (104 °F

Field of application

The Cleanfit CPA474 retractable assembly is designed for applications which require safe separation from the process and contain media that could affect stainless steel. It offers highest operating comfort: You can replace sensors and even service the assembly while the process is running. The optional electric or pneumatic control system enables automated cleaning and calibration even in difficult processes.



Cleanfit CPA474 is intended for use in tanks and pipes in:

  • Chemical industry

  • Wastewater / industrial water

  • Power plants

  • Refuse incinerators

It is suitable to be used with pressures of up to 10 bar (stainless steel cylinder) or 6 bar (PA cylinder).

Benefits

  • Safe and reliable separation from the process by ball valve, even under harsh conditions

  • Suitable for corrosive media: Only polymers (PP, PVDF, PEEK) in contact with medium

  • No process interruption for electrode cleaning and calibration – saves maintenance time and costs

  • Extended operating life of electrodes due to automatic cleaning

  • Flexible adaptation to all applications by great variety of materials and process connections

Predecessor

  •
