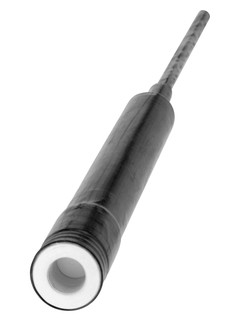

FMX21-AA111HGB11A Hydrostatic Level Measurement Waterpilot FMX21
  • name
  • name
  • name
  • name

FMX21-AA111HGB11A Hydrostatic Level Measurement Waterpilot FMX21

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 5000pcs/month
Details Information
Product Description
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
FMX21-AA111HGB11A
Accuracy:
0.2% 0.1% (optional)
Process Temperature:
-10°C...70°C
Pressure Measuring Range:
100 Mbar...20 Bar
Main Wetted Parts:
Diameter 22 Mm And 42 Mm: Seal, 316L, Ceramic
Max. Measurement Distance:
200 M H2O (656 Ft H2O)
Measuring Cell:
100mbar...20bar
Highlight:

FMX21 Hydrostatic Level Measurement

,

FMX21-AA111HGB11A

,

Hydrostatic Level Measurement Waterpilot

Product Description

FMX21-AA111HGB11A Hydrostatic Level Measurement Waterpilot FMX21



Approval Non-hazardous area
Output 4-20mA
Probe Tube 316L, d=22mm/0.87in





FMX21-AA111HGB11A Hydrostatic Level Measurement Waterpilot FMX21 0FMX21-AA111HGB11A Hydrostatic Level Measurement Waterpilot FMX21 1



Specs at a glance

  • Accuracy

    0.2%
    0.1% (optional)

  • Process temperature

    -10°C...70°C
    (14°F...158°F)
    Diameter 29 mm (1.14"): 0°C...50°C
    (32°F...122°F)

  • Pressure measuring range

    100 mbar...20 bar
    (1.5 psi...300 psi)

  • Main wetted parts

    Diameter 22 mm and 42 mm: Seal, 316L, Ceramic
    Diameter 29 mm: Seal, PPS, Polyolefin, Ceramic
    Extension cable: PE, PUR, FEP

  • Max. measurement distance

    200 m H2O
    (656 ft H2O)

  • Measuring cell

    100mbar...20bar
    (1.5psi...300psi)

Field of application

The Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted and a density-compensated level measurement can be activated. It is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.



Three different versions for drinking water, wastewater and sewage, saltwater.

  • Process connections: Suspension clamp, cable gland

  • Temperature: –10 to +70°C (14 to 158°F)

  • Measuring range: 0 to 20bar / 200m H20 (0 to 300psi / 600ft H2O)

  • Accuracy: ±0.2%, "Platinum" ±0.1%

  • International explosion protection certificates, marine approvals, drinking water approval

Benefits

  • Robust overload-resistant high purity ceramic sensor (99.9% Al2O3)

  • Flexible scaling of 4 to 20mA with superimposed HART 6.0 output

  • Highest level accuracy using temperature compensated density correction

  • Simultaneous measurement of level and temperature with optionally integrated Pt100 temperature sensor

  • Extensive range of accessories provides complete measuring point solutions

  • Climate proofed sensor thanks to completely potted electronics and 2-filter pressure compensation system

  • Small outer diameter of 22mm (0.87") version suitable for drinking water applications and for use in bore holes and wells with small diameters
