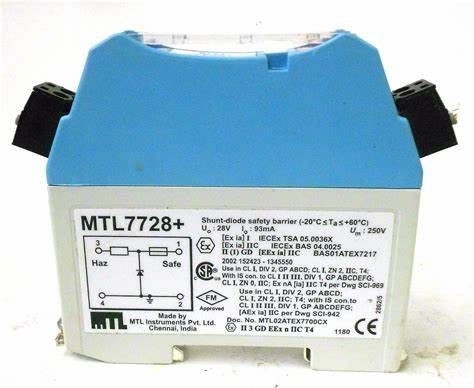

MTL7728+ MTL Zener Safety Barrier Single Channel Analog Output
  • name
  • name
  • name

MTL7728+ MTL Zener Safety Barrier Single Channel Analog Output

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 5000pcs/month
Details Information
Product Description
Detail Information
Place of Origin
US
Brand Name
MTL
Certification
Rohs
Model Number
MTL7728+
Part Number:
7728+
Aprroval:
ATEX Approved
Country Of Origin:
England
Isolation Voltage:
1500 VAC
Temperature Range:
-20°C To +60°C
Maximum Output Voltage:
24V From 180Ω
Highlight:

MTL7728+ MTL Zener Safety Barrier

,

Single Channel Zener Safety Barrier

Product Description



MTL7728+|  Instruments | Proximity Detector Interface



MTL7728+ MTL Zener Safety Barrier Single Channel Analog Output 0



  All MTL7700 series Zener barriers are based on the same design principles. Each channel contains a secondary pulse detecting Zener or forward connecting diode and a “reliable” terminating resistor. In the event of an electrical fault in the safety zone, the diode limits the voltage that can reach the hazardous area, while the resistor has a current limiting effect. A fuse protects the diode, and a two-stage voltage limiting function ensures continuous protection in the event of a failure in either stage. No active output current limiting circuitry is used. All models are certified “ia” - for all zones and “IIC” - for all explosive atmospheres (except MTL7707P+ and MTL7729P+, “ia” “IIB”).




Commonly Used MTL7700 Summary Table

Type Application Main safety barriers
Analog input (low level) RTD temperature detector, thermocouple, AC sensor
MTL7756ac

MTL7760ac

Analog input (high level) Transmitter, 2-wire, 4/20mA
MTL7706+

MTL7787+

Analog Output
Controller output, single wire grounded

Controller output, neither wire grounded

MTL7728+

MTL7787+

Digital (switch) input Switch
MTL7787+

MTL7787+ MTL7741/3

Digital (switching) outputs Solenoid valves, alarms, light-emitting diodes MTL7728



Manufacturer MTL Instruments
Product type Vibration Transducer Interface
Product no MTL7728+







Tags:

50mA mtl5032 pulse isolator,

50kHz mtl5032 pulse isolator,

MTL5532 isolation barrier

Recommended Products
