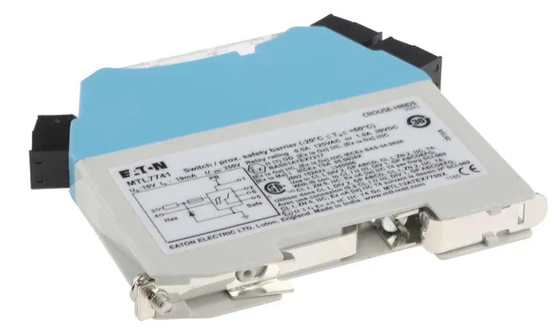

Eaton MTL7741 Intrinsic Safety Barrier for ATEX Digital Input 24V DC Output
  • name
  • name
  • name

Eaton MTL7741 Intrinsic Safety Barrier for ATEX Digital Input 24V DC Output

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 5000pcs/month
Details Information
Product Description
Detail Information
Place of Origin
USA
Brand Name
MTL
Certification
Rohs
Model Number
MTL7741
Color:
Blue
Manufacture:
MTL
Shipping Weight:
1.1 Kg
Output Voltage:
24V DC
Dimensions:
2 Cm X 10.98 Cm X 12.36 Cm
Certifications:
ATEX, IECEx, UL, CSA
Highlight:

ATEX MTL7741

,

Eaton MTL7741 Intrinsic Safety Barrier

,

24V DC Output MTL7741

Product Description



MTL7741|  Instruments | Proximity Detector Interface



Eaton MTL7741 Intrinsic Safety Barrier for ATEX Digital Input 24V DC Output 0Eaton MTL7741 Intrinsic Safety Barrier for ATEX Digital Input 24V DC Output 1





MTL7741  Eaton 1 Channel Zener Barrier, Intrinsic Safety Barrier, Digital Input, ATEX



All MTL7700 series Zener barriers are designed according to the same design principles. Each channel consists of a secondary pulse detecting Zener or forward connecting diode and a “reliable” terminating resistor. In the event of an electrical fault in the safety zone, the diode limits the voltage that can reach the hazardous area, while the resistor has a current limiting effect. A fuse protects the diode, and a two-stage voltage limiting function ensures continuous protection in the event of a failure in either stage. No active output current limiting circuitry is used. All models are certified “ia” - for all zones and “IIC” - for all explosive atmospheres (except MTL7707P+ and MTL7729P+, “ia” “IIB”).




Commonly Used MTL7700 Summary Table

Type Application Main safety barriers
Analog input (low level) RTD temperature detector, thermocouple, AC sensor
MTL7756ac

MTL7755ac

MTL7760ac

Analog input (high level) Transmitter, 2-wire, 4/20mA
MTL7706+

MTL7787+

MTL7787P+

MTL7788+

Analog Output
Controller output, single wire to ground

Controller output, neither wire grounded

MTL7728+

MTL7787+

MTL7787P+

Digital (switch) input Switch/proximity switch
MTL7787+

MTL7787P+

MTL7789+

MTL7741

MTL7742

MTL7743

MTL7744

MTL7745

Digital (Switching) Outputs
Solenoids, Alarms, Light Emitting Diodes

MTL7728+

MTL7707+

MTL7728P+

MTL7729P+

MTL7787+

MTL7787P+

Positive DC Systems
Low Voltage to 12V DC Systems

18V DC Systems

MTL7764+

MTL7767+

MTL7722+

AC and DC Systems High Voltage AC and DC Systems
MTL7765ac

MTL7778ac

Negative/Floating Power Supply Digital (Switching) Outputs MTL7728-
Spare Cord and Shield - MTL7799
Bus Power Usage - MTL7799
MTL7706

MTL7707+

MTL7707P+

MTL7741

MTL7742

MTL7743

MTL7744

MTL7745

MTL7787+

MTL7787P+

MTL7788+

MTL7789+



Manufacturer MTL Instruments
Product type Vibration Transducer Interface
Product no MTL7741







Tags:

50mA mtl5032 pulse isolator,

50kHz mtl5032 pulse isolator,

MTL5532 isolation barrier
