CPS12D-7PA21 Digital ORP Electrodes Orbisint CPS12D -1500 mV...1500 mV, -15...135oC, 0,8...17 bar (abs)

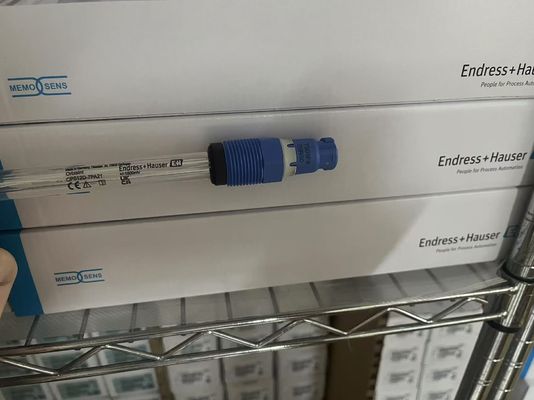

CPS12D-7PA21 Digital ORP Electrodes Orbisint CPS12D

Features and specifications

ORP / Redox Potential

Measuring principle ORP electrode
Applications Standard applications in the process and environmental fields. Long-term monitoring of static stabilization processes.

Features Non-contact Memosens digital technology.
Robust, heavy dust applications, high pressure type.

Measuring range -1500... +1500 mV

Measuring principle - compact gel electrode with teflon diaphragm and double gel reference.
Measuring parts are gold needles or platinum rings.

Design - All sensor lengths are equipped with a temperature sensor.
- Advanced Gel Technology
- Inductive Memosens Digital Data Transfer

Material Glass electrode with Teflon diaphragm.

External dimensions Diameter: 12 mm
Rod lengths: 120 mm, 225 mm, 360 mm

Process temperature 135°C max.

Process pressure max. 16 bar

Temperature sensor Pt1000

Ex approvals ATEX II IG EEXia IIC T3/T4/T6
FM/CSA Class1 Div.2 for use with CM42 and CPM153 transmitters.

Connection Inductive, digital connection head with Memosens technology

Protection class IP68

Other certificates Biocompatibility according to ISO 10993-5 and USP (current version).
TÜV certified with a maximum withstanding capacity of 16 bar, providing triple overpressure safety protection.
Electromagnetic compatibility according to EN 61326.

Memosens Glass Electrode for Standard Applications

The Orbisint CPS12D is an all-round digital glass ORP electrode for process and environmental measurements. The ORP electrode provides reliable, high-precision measurements, even in hazardous areas. the ORP electrode has a long service life, is low-maintenance and cost-effective.The Orbisint CPS12D is not the latest generation of Memosens sensors. The new generation of Memosens CPS12E sensors has been upgraded with new features.
