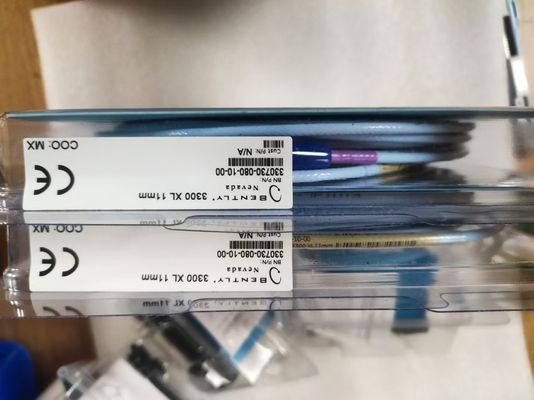

330730-080-10-00 Bently Nevada 3300 XL 11mm Extension Cable

330730-080-10-00 | Bently Nevada | 3300 XL 11 mm Extension Cable

• Estimated Lead Time : 12-16weeks

• Manufacturer : Bently Nevada

• Product No. : 330730-080-10-00

• Product type : 3300 XL 11 mm Extension Cable

• Made in U.S.A

• Can add on Certificate Of Origin (COO)

• Cable Length Option : 080 = 8.0 metres (26.2 feet)

• Connector and Cable Option : 10 = FluidLoc cable

• Agency Approval Option : 00 = Not required

• Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical

• Extension Cable Armor (optional): Flexible AISI 302 SST with FEP outer jacket.

• Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F)

• Weight : 0.36 Kg

• Shipping weight : 1.5 Kg

Features:
3.94 V/mm (100 mV/mil) Output
Long Linear Range
Thin Design

The GE / Bentley Nevada 3300 XL 11mm Proximity Transducer System is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components.

In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.

The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations.
