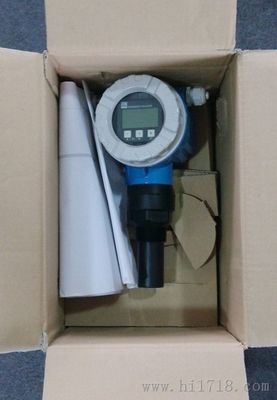

Ultrasonic measurement Time-of-Flight Prosonic FMU40 FMU40-ANB2A2

MOQ: 1pcs
Price: USD780/PCS
Standard Packaging: carton
Delivery Period: 5-8works
Payment Method: T/T
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
E+H
Certification
ce
Model Number
FMU40-ANB2A2
Warranty:
1 Year
Origina:
Germany
Name:
FMU40
Power Supply:
24 VDC
Process Temperature:
-40 °C ... 150 °C
Pressure:
-1 To +40bar
Product Description



  • Ultrasonic measurement Time-of-Flight Prosonic FMU40 FMU40-ANB2A2





Specs at a glance

  • Accuracy

    +/- 2 mm or +/- 0.2 % of set measuring range 1)

  • Process temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process pressure / max. overpressure limit

    0.7 bar ... 3 bar abs
    (10 psi ... 44 psi)

  • Max. measurement distance

    Liquids: 5 m (16 ft),
    Solids: 2 m (6.6 ft)

  • Main wetted parts

    PVD
    Field of application

The Prosonic FMU40 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.



Two-wire or four-wire instrument for continuous non-contact level and flow measurement.

  • Process connection: Thread

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: +0.7 to +3bar (+10 to +44psi)

  • Maximum measuring distance: Liquids 5m (16ft), Solids 2m (16ft)

  • Blocking distance: Liquids and Solids 0.25m (0.8ft)

  • International explosion protection certificates

  • Ultrasonic measurement Time-of-Flight Prosonic FMU40 FMU40-ANB2A2 0Ultrasonic measurement Time-of-Flight Prosonic FMU40 FMU40-ANB2A2 1
