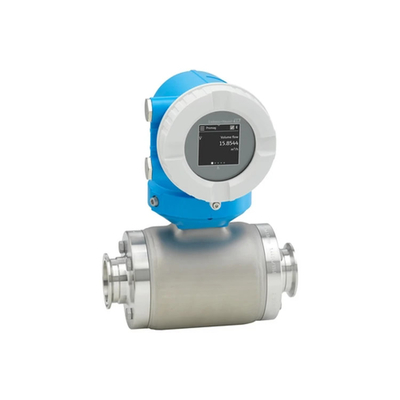

Name: 55S50-UA1BEAA0AFAA E+H Proline Promag 55S Electromagnetic Flow Meter
Brand: GREAT SYSTEM INDUSTRY CO. LTD
SKU: 55S50-UA1BEAA0AFAA
Price: 1420 USD
Availability: InStock

MOQ:	1pcs
Price:	USD1420/PCS
Standard Packaging:	carton
Delivery Period:	5-8works
Payment Method:	T/T

Details Information

Product Description

Detail Information

Place of Origin

Germany

Brand Name

E+H

Certification

Model Number

55S50-UA1BEAA0AFAA

Warranty:

12month

Origina:

Name:

55S50

Power Supply:

24 VDC

Process Temperature:

-20°C ... 180°C

Ingress Protection:

IP66/67, NEMA 4X

Highlight:

55S50-UA1BEAA0AFAA Electromagnetic Flow Meter

E+H Proline Electromagnetic Flow Meter

Product Description

55S50-UA1BEAA0AFAA E+H Proline Promag 55S Electromagnetic Flow Meter

Liner:U

Polyurethane

Process Connection:A

PN40, St37-2/FE 410W B, flange EN1092-1 (DIN2501)

Electrodes:1

Alloy C-22

Calibration:B

0.2%

Additional Test, certificate:E

EAC marking

Approval:A

Non-hazardous area

Housing:A

Compact Alu, IP67 NEMA4X

Cable, Remote Version:0

Not used

Cable Entry:A

Gland M20 (EEx d > thread M20)

Power Supply; Display:F

20-55VAC / 20-64VDC, EES, 4-line + Touch control, EES= language SV+FI+NO+RU+PL+CS+EN

Adjustment; Software Feature:A

Factory setup; basic version

Output, Input:A

4-20mA HART + frequency

Details:

Assign line 1: Volume flow

Assign line 2: Totalizer 1

Assign line 3: Operation/syst.cond.

Assign totalizer 1: Volume flow balance

Unit totalizer 1: dm3

Assign totalizer 2: Volume flow forward

Unit totalizer 2: dm3

Assign totalizer 3: Volume flow reverse

Unit totalizer 3: dm3

Assign current output: Volume flow

Current span: 4-20 mA HART NAMUR

Value 0/4 mA: 0 dm3/min

Value 20 mA: 300.00000 dm3/min

Measuring mode: Standard

Time constant: 3.00000 s

Failsafe mode current output: Min. current

Assign pulse output: Volume flow

Pulse value (per pulse): 2.50000 dm3

Pulse width: 100.00000 ms

Output signal: Passive - positive

Failsafe mode pulse output: Fallback value

Net weight: 14.077 Kilogram

SPK: DAA

HS-Code: 90261021

Country of origin: FR

Country of dispatch: FR
