3500/94(147663-01) Bently Nevada 3500/94 Display Router Module

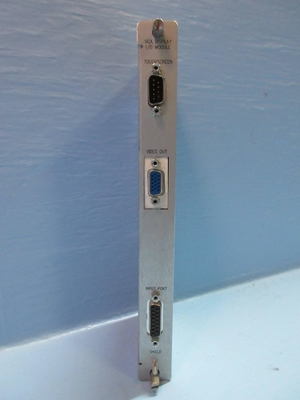

147663-01 is a VGA Display I/O Module manufactured and designed by Bently Nevada as part of 3500 Series used in machinery condition monitoring. VGA Display shows 3500 data on a typical color VGA monitor using Touch Screen technology. The VGA Display Module and its I/O card, as well as the VGA display monitor, are the two parts of this device. With normal cabling, the display monitor can be positioned up to 10 meters (33 feet) from the rack.

147663-01 Features

• Configure the 3500/94 modules for language and VGA display type using the 3500 Rack Configuration Software. All other types of data configuration are done locally at the display, giving the operator control over the displayed data. Locally, you can set up nine custom screens.
• For example, one custom screen could display all of the 1X measurements, while another displays all of the Gap values, or the custom screens could be organized into machine train groupings. You can organize all system data into any specified sets and then assign the data to a custom screen.
• There is also an API-670 compatible screen available. This screen displays a "3300-style" bar graph and numerical values for each rack slot's monitor. Each module displays Direct or Gap values, as well as OK and Bypass LEDs.

• Brand/ Manufacturer:

  Bently Nevada

• Dimensions:

  24.3 cm x 4.6 cm x 15.5 cm

• Weight:

  0.55 kg

• Country Of Origin: :

  USA

•

Multiple Rack Feature

　　Selecting the 3500/94 Display Router Box provides an additional viewing feature. This feature allows users to view a maximum of four racks with one display. Each rack must be individually viewed, but the rack address and alarm status of each rack is always visible in the upper right corner of the screen. The Display Router Box must be located within 6 m (20 ft) of each 3500 rack.

All display monitor types are “Touch Screen”. Because the “Touch Screen” controllers differ, users must configure each display monitor type using the 3500 Rack Configuration Software

　　The 3500/94 offers a Display Router Box that allows up to four 3500 racks to drive a single display. The Display Router Box acts as a switch box that allows the operator to switch the display between racks. An important feature of the Display Router Box is its ability to show the alarm and OK status of each connected rack.

　　3500/94-145988-01 is a Main module developed by Bently Nevada. The VGA Display displays 3500 data on a standard color VGA monitor with Touch Screen technology. This product consists of two parts: the VGA Display Module and its I/O card, and the VGA display monitor. The display monitor can be mounted up to 10 m (33 ft) from the rack using standard cabling.
