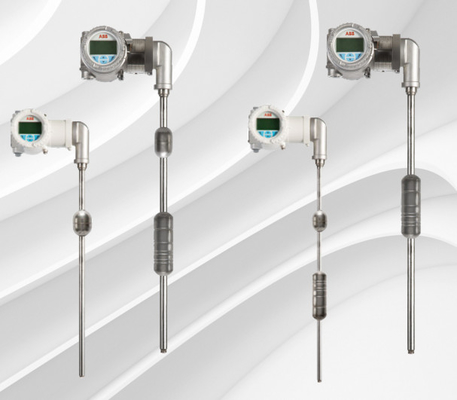

ABB LMT100 magnetostrictive level transmitter High accuracy liquid level and interface level detection

Features
• High accuracy: 0.01 % of full scale or ±1.27 mm
• No re–calibration needed: set it and forget it
• Superior sensor (patent #5,473,245)
• Local indication with HMI display
• Dual compartment housing with separate field terminal
compartment
• Loop powered to 22 m (75 ft) probe length
• Total and/or interface level measurement
• Pressure to 165.48 bar (2400 psig)
Std. 124.1 bar (1800 psig)
• Temperature range: –195.5 to 426.6 °C (–320 to 800 °F)
with options
• Field replaceable/upgradable electronics module
• Built–in RFI/EMI filter
• Digital communications
• 4 to 20 mA HART® output
• HART 7 and FOUNDATION™ Fieldbus ITK6.3.0
• Global hazardous location approvals and SIL 2/3 capable

Electronic transmitter
Repeatability ±0.005 % of full scale or 0.31 mm (0.012 in), whichever is greater
Non–linearity ±0.01 % of full scale or 0.86 mm (0.034in), whichever is greater
Measuring accuracy ±0.01 % of full scale or 1.27 mm (0.050 in), whichever is greater1
Supply voltage 12 to 43 V DC for 4 to 20mA HART loop powered, 9.0 to 32 V DC for Foundation Fieldbus
Output/Communications 4 to 20mA HART7 or FOUNDATION Fieldbus ITK 6.3.0
User interface Interactive display, DTM, EDDL, FDI with NE107 messaging
Write protection Hardware switch and software switch
Power consumption 4 to 20mA at 36.0 V DC– 3.6 mA 0.13 W; 21mA 0.76 W
at 12.0 V DC– 3.6 mA 0.043 W; 21mA 0.25 W
HART mode (4.0mA) at 36.0 V DC 0.144 W
at 12.0 V DC 0.048 W
FF mode (17 mA) at 9.0 V DC 0.153 W
at 32.0 V DC 0.544 W
Maximum line resistance 4 to 20mA at 36.0 V DC and 21 mA, 1142 Ω*
at 24.0 V DC and 21 mA, 571 Ω
at 13.5 V DC and 21 mA, < 72 Ω**
**Maximum allowable with HART communication is 700 Ω
**See the current/resistance chart
HART mode (4mA) < 650 to 700 Ω
FF mode (17mA) at 32.0 V DC, 1500 Ω.
at 9.0 V DC, 50 Ω.
Polarity protection 4 to 20 mA, diode in series with loop, FOUNDATION Fieldbus and Profibus PA, polarity insensitive
Update rate 10 measurements per s
Minimum measuring span 76.2 mm (3.0 in), consult factory if smaller span is required
Damping Field adjustable, range: 0 to 60 s
Alarm output For 4 to 20 mA: NE43, software or hardware selectable. Upscale (21 mA) or downscale (3.6 mA)
Surge suppression Integral surge suppression available with option code S1 meeting IEC61000-4-5, 1kV/2kV, criteria B
Ambient temperature –40 to 85 °C (–40 to 185 °F) ambient2
Humidity 0 to 100 % RH
Linearization 21 point table available
Temperature sensor (optional) 1000 ohm Pt RTD, option code SER or STL
Temperature tolerance class IEC 60751 class B, ±(0.3+0.005[t]) –70° to 230 °C
Enclosure Dual compartment
Enclosure material Cast low copper aluminum with powder coat or 316 stainless steel
Remote transmitter Standard remote distances of 5 m (16 ft), 10 m (33 ft), 20 m (66 ft), 30 m (98 ft)
Device tag material AISI 316 stainless steel
Electrical connection Two M20 x 1.5 or two ½in FNPT, adapters and bus connectors also available
Ingress protection IP66, NEMA 4X
1     Measurement accuracy is recorded at factory ambient conditions (23.88 °F ±5.6 °C [75 °F ±10 °F]) using a calibration magnet. Accuracy may be further
influenced by other factors such as float hysteresis, installation, process conditions and ambient conditions.
2     Some agency approvals may differ.
Sensor tube
Standard Options
Material 316/L stainless Steel Alloy 20, Hastelloy® C–276, PFA–TEFLON® jacketed, others on request
Process temperature –195.5 to 121.1 °C (–320 to 250 °F) up to 427 °C (800 °F) with options
Process pressure –1.0 to 124.1 bar @ 149 °C (–14.7 to 1800 psig @ 300 °F) 165.47 bar (2400 psig) maximum with the HP probe type
Probe length 304.8 mm to 9.14 m (1 to 30 ft) 22.86 m (75 ft) maximum w/ W7 flexible probe in sensor well
Probe length
tolerance
±3.2 mm (0.125 in) up to 3.0 m (10 ft); ±6.4 mm (0.25 in) up to 6.0 m (20 ft);
±9.0 mm (0.35 in) up to 9.0 m (29.5 ft); +/– 25.4 mm (1.0 in) up to 22.86 m (75 ft)
Mounting ¾ in MNPT compression fitting plugs, threaded fittings, loose flanges and welded flange
process connections also available
—
S
