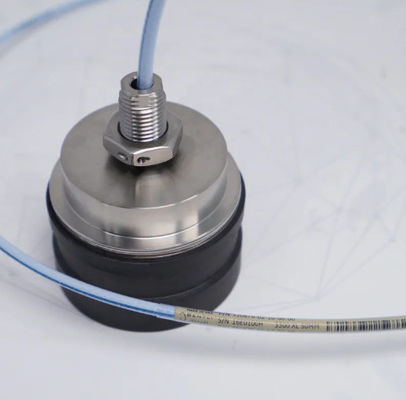

330876-02-10-00-00 BENTLY NEVADA Proximity Probe 3300 XL 50 mm Proximity Transducer

MOQ:	1
Price:	Negotiable
Standard Packaging:	carton
Delivery Period:	on request
Payment Method:	T/T
Supply Capacity:	100+pc+on stock

Details Information

Product Description

Detail Information

Place of Origin

U.S.A

Brand Name

BENTLY NEVADA

Certification

Model Number

330876-02-10-00-00

Manufacture:

BENTLY NEVADA

Part Number:

330876-02-10-00-00

Model Type:

3300 XL 50 Mm Proximity Probes

Unthreaded Length:

20 Mm

Overall Case Length:

100 Mm

Total Length:

5.0 Metre

Connector And Cable Type:

Miniature Coaxial ClickLoc Connector, Standard Cable

Agency Approval:

No Required

Shipping Weight:

1.2kg

Highlight:

330876-02-10-00-00 Proximity Probe

50 mm Proximity Probe

3300 XL Proximity Probe

Product Description

ldu

The 3300 XL 50 mm Transducer System consists of a separate 50 mm probe, an
extension cable, and a 3300 XL 50 mm Proximitor* Sensor. The large diameter
coil gives this system a maximum linear range of 27.9 mm (1100 mils), the
longest linear range of our eddy current transducer line. This linear range makes
the 3300 XL 50mm Transducer System ideal for measuring the differential
expansion (DE) or rotor expansion (RX) of large steam turbine generators that
results from the difference in growth rates between the turbine rotor and the
machine stator (casing).

Measuring Differential Expansion
The Differential Expansion measurement is made by using two proximity
transducers that observe a collar or ramp some distance from the thrust
bearing. Typical transducer mounting arrangements that require the 3300 XL 50
mm Transducer’s long linear range include:
• Two transducers observing the same side of a collar.
• Two complementary input transducers observing opposite sides of a
collar, effectively doubling the measurable DE range.

330876-02-10-00-00 BENTLY NEVADA Proximity Probe 3300 XL 50 mm Proximity Transducer 0

ct’s Character:

The use of the product:

1. Oil and Gas;

2. Petrochemical;

3. Municipal Engineering.

Ordering Information
3300 XL 50 mm Proximity Probe:
330876-AXX-BXX-CXX-DXX
A: Probe Case Type Option
0 1 ½-20 Thread – Straight Exit
0 2 M14x1.5 Thread – Straight Exit
0 3 Smooth 1.99 in dia - Side Exit
B: Total Length Option
1 0 1.0 metre (3.3 feet)
5 0 5.0 metres (16.4 feet)
9 0 9.0 metres (29.5 feet)
C: Armor Option
0 0 High Temperature FluidLoc
Cable
0 1 High Temperature FluidLoc
Cable with Armor
D: Agency Approval Option
0 0 No Approvals
0 5 Multiple Approvals

330876-02-10-00-00 BENTLY NEVADA Proximity Probe 3300 XL 50 mm Proximity Transducer 1

Related Product Recommendation:

Other Modules

Bently Nevada	3500/15 106M1079-01	Power Supply Module
Bently Nevada	3500/05-02-04-00-00-01	System Rack
Bently Nevada	3500/05-01-02-01-00-01	System Rack
Bently Nevada	3500/05-01-02-01-00-00	System Rack
Bently Nevada	3500/05-01-02-00-00-01	System Rack
Bently Nevada	3500/05-01-02-00-00-00	System Rack
Bently Nevada	Bently Nevada 330905-00-10-10-02-CN	Bently Nevada 330905-00-10-10-02-CN Bently Nevada 330905-00-10-10-02-CN
Bently Nevada	Bently Nevada 330905-00-10-10-02-CN	Bently 330905-00-10-10-02-CN Bently 330905-00-10-10-02-CN
Bently Nevada	Bently 330905-00-10-10-02-05	Bently 330905-00-10-10-02-05 Bently 330905-00-10-10-02-05
Bently Nevada	Bently Nevada Proximity Probes	Bently Nevada Proximity Probes Bently Nevada Proximity Probes
Bently Nevada	Bently Nevada Proximity Probes Bently Nevada Proximity Probes	Bently Nevada Proximity Probes Bently Nevada Proximity Probes
Bently Nevada	Bently Nevada 3300 XL Bently Nevada 3300 XL	Bently Nevada 3300 XL Bently Nevada 3300 XL
Bently Nevada	Bently Nevada 3300 XL Bently Nevada 3300 XL	Bently Nevada 3300 XL

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)

Frequently Asked Questions:

1. Q: Does your goods are new and original?

A: Yes, they are new and original.

Q: How long warranty?

A:One-year warranty.

Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.

330876-02-10-00-00 BENTLY NEVADA Proximity Probe 3300 XL 50 mm Proximity Transducer 2
