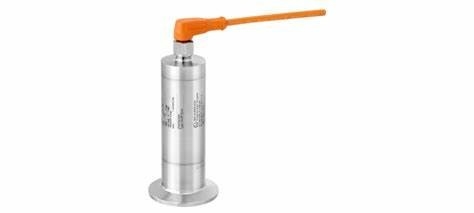

Absolute and gauge pressure Cerabar PMP23 PMP23-CA1N2SJWSJ

MOQ: 1pcs
Price: USD220/PCS
Standard Packaging: carton
Delivery Period: 5-8works
Payment Method: T/T
Details Information
Product Description
Detail Information
Place of Origin
GERMANY
Brand Name
E+H
Certification
ce
Model Number
8E1C25-AADBBAASAD2SHA1
Warranty:
1 Year
Origina:
CH
Power Supply:
24 VDC
Process Temperature:
-40°C...+240°C
Net Weight:
0.42kg
Highlight:

gauge pressure Cerabar PMP23

,

Absolute Cerabar PMP23

,

CA1N2SJWSJ Cerabar PMP23

Product Description

Absolute and gauge pressure Cerabar PMP23 PMP23-CA1N2SJWSJ


Approval:CA
CSA C/US General Purpose
Output:1
4-20mA
Electrical Connection:N
Plug M12, IP66/69 NEMA Type 4X Encl.
Sensor Range:2S
40bar/4MPa/600psi abs, overload: 160bar/16MPa/2400psi
Calibration; Unit:J
Customized; see additional spec.
Process Connection:WSJ
Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDG
Details:
Low range value: 1 bar
Upper range value: 10 bar
Net weight: 0.420 Kilogram
SPK: PAU
HS-Code: 90262020
Country of origin: DE
Country of dispatch: DE

     Benefits

  • Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

  • IO-Link reduces costs and complexity due to easy configuration via simple configuration tools or through the engineering system

  • Fully welded process connections maximize process safety by minimizing the use of gaskets

  • Enhanced process availability is ensured by the stringent use of 316L material and the possibility of IP 69 ingress protection for washdown conditions, as well as the high reproducibility and long-term stability of the product

  • A high flexibility of use and therefore lower storage costs are guaranteed as the PMP23 is suitable for CIP / SIP cleaning

  • The PMP23 can support the need for hygienic documentation and traceability in the plant as certification such as EHEDG, 3-A or (EC)1935/2004 are available among other relevant certificates and manufacturing declarations

Absolute and gauge pressure Cerabar PMP23 PMP23-CA1N2SJWSJ 0


  • Advantage:

    Best possible prices and delivery time

    Long time experience in the field

    Well trained staff

    Own warehouse facilities

    Best relationships with branch office of manufacture

    Flexible and individual service for you

    Cheap and safe forwarder for shipments (air)


    Absolute and gauge pressure Cerabar PMP23 PMP23-CA1N2SJWSJ 1
