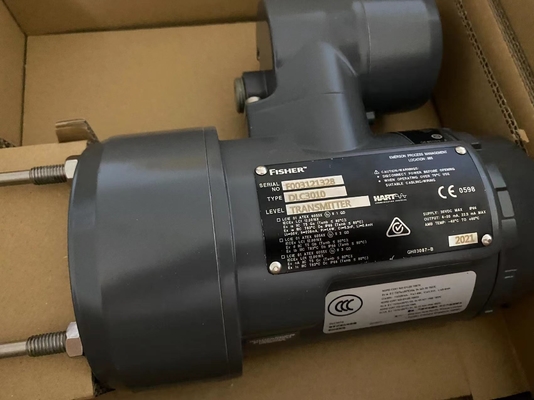

Fisher FIELDVUE DLC3010 Digital Level Controller In Stock

DLC3010 Digital Level Controller | Fisher Fieldvue

Product name : DLC3010 Digital Level Controller | Fisher Fieldvue

Manufacturer : Fisher

Model Number : DLC 3010

Type : Digital Level Controller

Origin: USA

Shipping weight : 4 Kgs

DLC3010 Digital Level Controller is a communicating, microprocessor-based instrument that can be configured to sense the level, interface level, or density of liquids. In addition to the normal function of providing a 4 to 20 milliampere current signal, the DLC3010, using HART® communications protocol, gives easy access to information critical to process operation. You can obtain information about the process, instrument, or sensor using the 475 or 375 Field Communicator. The DLC3010 can be used in analog or HART digital signaling mode with the Emerson Automation Solutions DeltaV™ system.

Application

DLC3010 digital level controller is used with level sensors to measure liquid level, the level of the interface between two liquids, or liquid specific
gravity (density). Changes in level or specific gravity exert a buoyant force on a displacer, which rotates a torque tube shaft. The digital level controller converts this rotational motion to an electronic signal….more

Specification:

Communications Protocol: HART
Input Signal
Level, Interface, or Density: Rotary motion of torque
tube shaft proportional to changes in liquid level,
interface level, or density that change the buoyancy
of a displacer.
Process Temperature: Interface for 2- or 3-wire
100 ohm platinum RTD for sensing process
temperature, or optional user-entered target
temperature to permit compensating for changes in
specific gravity
Output Signal
Analog: 4 to 20 milliamperes DC ( direct
action—increasing level, interface, or density
increases output; or reverse action—increasing
level, interface, or density decreases output)
High saturation: 20.5 mA
Low saturation: 3.8 mA
High alarm: 22.5 mA
Low Alarm: 3.7 mA

Mounting the 249 Sensor
The 249 sensor is mounted using one of two methods, depending on the specific type of sensor. If the sensor has a
caged displacer, it typically mounts on the side of the vessel as shown in figure 3. If the sensor has a cageless displacer,
the sensor mounts on the side or top of the vessel as shown in figure 4.
Figure 3. Typical Caged Sensor Mounting
LIQUID LEVEL
Figure 4. Typical Cageless Sensor Mounting
The DLC3010 digital level controller is typically shipped attached to the sensor. If ordered separately, it may be
convenient to mount the digital level controller to the sensor and perform the initial setup and calibration before
installing the sensor on the vessel.
