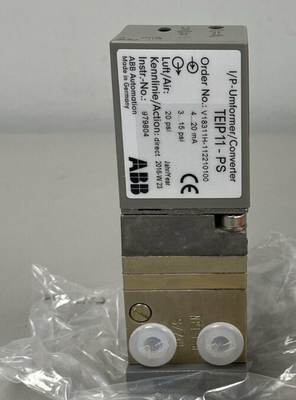

I/P Signal Converter for Standard Signals TEIP11-PS V18311H-112210100

I/P Signal Converter for Standard Signals TEIP11-PS Current 0...20 mA/4...20 mA, to air pressure 0.2...1 bar/3...15 ps

V18311H-112210100

Reliable through well-proven concept – More than 1,000,000 times in use

■ Compact design – Small dimensions, low weight

■ Robust in terms of construction and function – Influence of shock and vibration < 1 % at 10 g

■ Various signal ranges – Input e.g. 0...20 mA or 4...20 mA Output 0.2...1 bar or 3...15 psi

■ Complies with the following directives – EMC directive 89/336/EEC as of May 1989 EC directive for the CE conformity certificate

■ Wide operating temperature range – From -40 °C (optionally -55 °C) to +85 °C

■ Explosion protection certificates, for worldwide use – ATEX, FM/CSA, GOST Intrinsically safe or flameproof

■ Various models – Control room housing, IP 20, for rail mounting – Control room housing, IP 20, for block mounting, – Plastic field housing, IP 54 – Aluminium or stainless steel housing, IP 65

■ Single unit – For OEM applications (on request)

Reliable through well-proven concept – More than 1,000,000 times in use

■ Compact design – Small dimensions, low weight

■ Robust in terms of construction and function – Influence of shock and vibration < 1 % at 10 g

■ Various signal ranges – Input e.g. 0...20 mA or 4...20 mA Output 0.2...1 bar or 3...15 psi

■ Complies with the following directives – EMC directive 89/336/EEC as of May 1989 EC directive for the CE conformity certificate ■ Wide operating temperature range – From -40 °C (optionally -55 °C) to +85 °C

■ Explosion protection certificates, for worldwide use – ATEX, FM/CSA, GOST Intrinsically safe or flameproof

■ Various models – Control room housing, IP 20, for rail mounting – Control room housing, IP 20, for block mounting, – Plastic field housing, IP 54 – Aluminium or stainless steel housing, IP 65

■ Single unit – For OEM applications (on request)

Ex stock versions  V18311H - 1111101

3 ... 15 psi V18311H - 1112101

4 ... 20 mA 0.2 ... 1 bar V18311H - 1121101

3 ... 15 psi V18311H - 1122101

ATEX EEx ia IIC 0 ... 20 mA 0.2 ... 1 bar V18311H - 3111101

3 ... 15 psi V18311H - 3112101

4 ... 20 mA 0.2 ... 1 bar V18311H - 3121101

Field housing Explosion protection Material Input Output without Polyester 4 ... 20 mA 0.2 ... 1 bar V18311H - 1621101

3 ... 15 psi V18311H - 1622101

Aluminium 4 ... 20 mA 0.2 ... 1 bar V18311H - 1821101

3 ... 15 psi V18311H - 1822101

ATEX EEx ia IIC Polyester 4 ... 20 mA 0.2 ... 1 bar V18311H - 3621101

3 ... 15 psi V18311H - 3622101

Aluminium 4 ... 20 mA 0.2 ... 1 bar V18311H - 3821101

3 ... 15 psi V18311H - 3822101

Stainless steel 4 ... 20 mA 0.2 ... 1 bar V18311H - 3921101

ATEX EEx d IIC Aluminium

4 ... 20 mA 0.2 ... 1 bar V18311H - 4821101

3 ... 15 psi V18311H - 4822101

Stainless steel 4 ... 20 mA 0.2 ... 1 bar V18311H - 4921101
