330301-000-016-20-90-01-00 New Bently Nevada 3300 XL High Temperature Probe

MOQ: 1
Price: Negotiable
Standard Packaging: carton
Delivery Period: on request
Payment Method: T/T
Supply Capacity: 100+pc+on stock
Details Information
Product Description
Detail Information
Place of Origin
U.S.A
Brand Name
BENTLY NEVADA
Certification
ROHS
Model Number
330301-000-016-20-90-01-00
Manufacture:
BENTLY NEVADA
Part Number:
330301-000-016-20-90-01-00
Model Type:
3300 XL High Temperature Probes
Unthreaded Length:
0 Mm
Total Length:
2.0 Metre
Connector And Cable Type:
Miniature Coaxial ClickLoc Connector, Standard Cable
Agency Approval:
No Required
Shipping Weight:
2.5kg
Highlight:

3300 XL High Temperature Probe

,

330301-000-016-20-90-01-00 High Temperature Probe

,

330301-000-016-20-90-01-00

Product Description

l

DESCRIPTION


Part Number: 330301-000-016-20-90-01-00
Model: 3300 XL High Temperature Probe
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months


Ordering Information

Model 330301 3300 XL High Temperature Probe, 3/4-16 UNF threads
Unthreaded Length Option 000 0.0 in
Overall Case Length Option 016 1.6 in
Hardline Length Option 20 2.0 metre (6.6 feet)
Total Length Option 90 9.0 metres (30 feet)
Extension Cable Armor Option 01 With stainless steel armor
Agency Approval Option 00 Not required

  • Estimated Lead Time: 36 Weeks+
  • Shipping Weight: 2 Kg
  • Made in USA

Product’s Character:

Electrical
Proximitor
Sensor
Input

Accepts one noncontacting
3300 XL HTPS 16 mm Proximity
Probe with matched Extension
Cable.
Power Requires -19.6 Vdc to -26 Vdc at
12 mA maximum consumption.
Operation at a more positive
voltage than -23.5 Vdc can
result in reduced linear range.
Supply
Sensitivity

Less than 13 mV change in
output voltage per volt change
in input voltage.

Output
resistance

50 Ω

Probe dc Resistance
Probe
Length (m)

Resistance from the Center
Conductor to the Outer
Conductor (RpROBE) (°hms)
1.0 5.06
2.0 5.82
5.0 8.11
Extension Cable dc Resistance
Length of
Extension
Cable (m)

Resistance from
CenterConductor
to Center
Conductor

Resistance
from
Coaxial
Conductor

(RCORE) (ohms) to
Coaxial
Conductor
(rjacket)
(ohms)
4.0 0.88 0.26
7.0 1.62 0.49
8.0 1.84 0.55
Extension cable
capacitance

69.9 pF/m (21.3 pF/ft)
typical
Field wiring Maximum length of
305 metres (1,000 feet)
between the 3300 XL
HTPS Proximitor
Sensor and the
monitor. See the
frequency response
graph for signal rolloff
at high frequencies
when using longer
field wiring lengths.
Linear Range 4.0 mm (160 mils).
Linear range begins at
approximately 0.5
mm (20 mils) from
target and is from 0.5
to 4.5 mm (20 to 180
mils) (approximately
-2 to -18 Vdc).
Recommended Gap
Setting

2.5 mm (100 mils)

Incremental Scale
Factor (ISF)

3.94 V/mm (100
mV/mil) ±9.65%
including
interchangeability
error when measured
in increments of 0.5
mm (20 mils) over the
4.0 mm (160 mil) linear
range.

Deviation from best fit
straight line (DSL)

Less than ±78 |xm
(±3.1 mils).

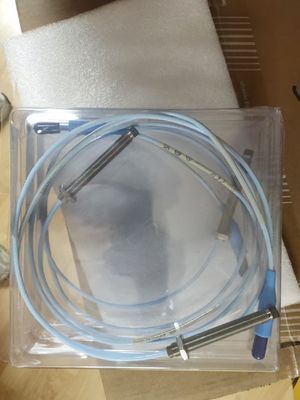

330301-000-016-20-90-01-00 New Bently Nevada 3300 XL High Temperature Probe 0

The use of the product:

1. Oil and Gas;

2. Petrochemical;

3. Municipal Engineering.



330301-000-016-20-90-01-00 New Bently Nevada 3300 XL High Temperature Probe 1

Related Product Recommendation:



Other Modules



Bently Nevada 3500/15 106M1079-01 Power Supply Module
Bently Nevada 3500/05-02-04-00-00-01 System Rack
Bently Nevada 3500/05-01-02-01-00-01 System Rack
Bently Nevada 3500/05-01-02-01-00-00 System Rack
Bently Nevada 3500/05-01-02-00-00-01 System Rack
Bently Nevada 3500/05-01-02-00-00-00 System Rack
Bently Nevada Bently Nevada 330905-00-10-10-02-CN Bently Nevada 330905-00-10-10-02-CN Bently Nevada 330905-00-10-10-02-CN
Bently Nevada Bently Nevada 330905-00-10-10-02-CN Bently 330905-00-10-10-02-CN Bently 330905-00-10-10-02-CN
Bently Nevada Bently 330905-00-10-10-02-05 Bently 330905-00-10-10-02-05 Bently 330905-00-10-10-02-05
Bently Nevada Bently Nevada Proximity Probes Bently Nevada Proximity Probes Bently Nevada Proximity Probes
Bently Nevada Bently Nevada Proximity Probes Bently Nevada Proximity Probes Bently Nevada Proximity Probes Bently Nevada Proximity Probes
Bently Nevada Bently Nevada 3300 XL Bently Nevada 3300 XL Bently Nevada 3300 XL Bently Nevada 3300 XL
Bently Nevada Bently Nevada 3300 XL Bently Nevada 3300 XL Bently Nevada 3300 XL

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)





Frequently Asked Questions:



1. Q: Does your goods are new and original?

A: Yes, they are new and original.



  • Q: How long warranty?

A:One-year warranty.



  • Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.

330301-000-016-20-90-01-00 New Bently Nevada 3300 XL High Temperature Probe 2
