PMP51-6355/139 Absolute And Gauge Pressure Cerabar PMP51
  • name
  • name
  • name
  • name

PMP51-6355/139 Absolute And Gauge Pressure Cerabar PMP51

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 500pcs/month
Details Information
Product Description
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
PMP51-6355/139
Accuracy:
Standard 0.1% Platinum 0.075%
Process Temperature:
-40°C...130°C (-40°F...266°F)
Pressure Measuring Range:
1 Bar...400 Bar (15 Psi...6000 Psi)
Process Pressure / Max. Overpressure Limit:
600 Bar (9000 Psi)
Main Wetted Parts:
316L
Max. Measurement Distance:
4000 M (13.123 Ft) H2O
Product Description

PMP51-6355/139 Absolute And Gauge Pressure Cerabar PMP51



PMP51-6355/139 Absolute And Gauge Pressure Cerabar PMP51 0



Material process membrane

 316L, AlloyC,
Rhodium>Gold

Measuring cell

 400mbar...400bar

Safety approvals

 SIL

Field of application

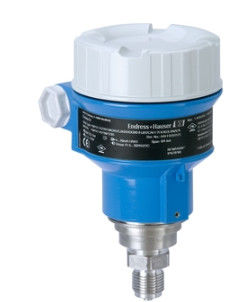

The Cerabar PMP51 digital pressure transmitter with metal membrane is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. PMP51 is designed for high pressure applications up to 400bar. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.



Single chamber aluminum or stainless steel (316L) housing.

  • Process connections: Threads, flanges or hygienic connections

  • Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h

  • Measuring range: -1/0 up to +400bar (-15/0 up to +6,000psi)

  • Accuracy: ±0.1%, "Platinum" ±0.075%

  • International explosion protection certificates, SIL, hygienic approvals, marine approvals

Benefits

  • Accurate measurement of the process value even in the case of changing process temperature

  • Process safety assured with small flush mounted process connections in hygienic applications

  • For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511

  • Modular concept for easy replacement of display or electronics

  • Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

  • Seamless and independent system integration (HART/PA/FF)

  • Available with mounted manifolds: always fit, always tested for leaks
