German VEGA guided wave level gauge FX81 cable type continuous level and interlayer measurement level gauge
  • name
  • name
  • name

German VEGA guided wave level gauge FX81 cable type continuous level and interlayer measurement level gauge

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 50pcs/month
Details Information
Product Description
Detail Information
Place of Origin
DE
Brand Name
VEGA
Certification
Rohs
Model Number
FX81
Wetted Materials:
PEEK, Stainless Steel, FKM, EPDM
Process Temperature:
-40°C...130°C (-40°F...266°F)
Measuring Range:
1
Heater:
W/o
Dimension:
96x96 Mm, Built-in-depth: 146 Mm
Power Supply:
230VAC (50/60Hz)
Sensor Length:
Min. 500 Mm
Specialities:
Hinged Paddle
Resolution:
Depends On The Specific Product
Warranty:
12 Months
Application:
Power & Energy
Liner:
PTFE
Electrical Connection:
Gland M20
Trace:
0 To 5 Mg/l HOCl
Product Description

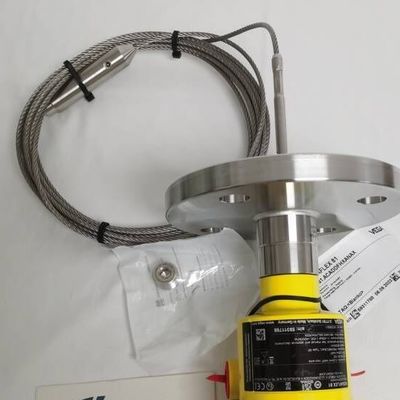

German VEGA guided wave level gauge FX81 cable type continuous level and interlayer measurement level gauge



FLEX81(FX81)



Application: Various liquids with steam, attachments, foaming, condensation water, and ammonia applications

Measurement range: Cable type measuring probes made of 316 up to 75 m in length, rod type measuring probes made of 316L or alloy C22 up to 6 m in length, coaxial tube type measuring probes made of 316L or alloy C22 up to 6 m in length

Structural form: replaceable cable (ø 2 mm, ø 4 mm)

Replaceable rod (ø 8 mm, ø 12 mm)

Coaxial tube (ø 21.3 mm, ø 42,2 mm)

Process connector: threaded, starting from G three-quarters, three-quarters NPT, flange, starting from DN 25.1 "

Process temperature: -60 ° C? 6?8 +200 ℃

Process pressure: -1? 6?8 +40 bar(-100 ?6?8 +4000 kPa)

Measurement accuracy: ± 2 mm

Signal output: 4 .. 20 mA/HART, Profibus PA,Foundation Fieldbus

Display and operation: PLICCCOM, PACTware, VEGADIS 81, VEGADIS 82

License: ATEX, IEC, FM, CSA, EAC (GOST), UKR Sepro, Overflow Protection, Shipbuilding, SIL2, FDA

Advantages:? The 7-4 extensive diagnostic methods ensure easy maintenance operation, resulting in high equipment availability

Due to the truncated probe, standardization and high flexibility can be easily achieved during planning

FTW31-A1A3AA4A L=800mm 1 E+H
FTW31-A1C2FB4A L=200MM 2 E+H
FTL31-AA4U3BAWSJ 5 E+H
1003-WPSA-CI-YZ-LH-VX-240VAC 4 P+F
EPV-4-SA-00 4 P+F
PS69.AXCFBAHXAMAXX 1 VEGA
PMP23-AA1U1SB3CJ 1 E+H
PMP23-AA1U1PB3CJ 1 E+H
FMD78-5B17HE1AR1B4+PD Capillary : 5 M 1 E+H
TMR35-A1BBDBAA1AAA 3 E+H
FTE30-ABCA 2 E+H
FTL31-CA1U2AAXCJ 4 E+H
266DSHFSSB2B1V2E1B2 1 ABB
PS64.AXTTCAHXKMXXX 2 VEGA
CAL62.XXBGAHKMXX L=800mm
Insulation length=72mm		 1 VEGA
FMR10-AAQBMVCEVEE2 1 E+H
FTL31-AA4M3BAWSJ 3 E+H
FTL31-AA4U3BAWSJ 1 E+H
PMP23-AA1U1PB3CJ 1 E+H
FTL31-AA4U3BAWDJ 1 E+H
FTI51-AAB1RGJ43A1A+1 L=100mm
(Tag plate stainless steel 52006326 blank)		 2 E+H



German VEGA guided wave level gauge FX81 cable type continuous level and interlayer measurement level gauge 0

German VEGA guided wave level gauge FX81 cable type continuous level and interlayer measurement level gauge 1
