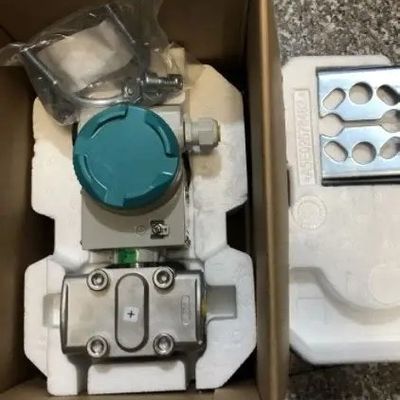

SIEMENS SITRANS P320 Pressure Transmitter Differential Pressure and Flow PN160 HART 4...20 mA with German Bar Labeling

Siemens 7MF0340-1BP01-5AM1-Z B11+E00+K81+Y02 Pressure transmitter

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 20 mbar (8.037 inH²O) Oval flange, fastening thread: M10 (PN160), M12 (PN420) (DIN 19213) with lateral venting Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x M20 x 1.5 With display (closed lid) Cable gland and sealing plug attached, plastic Labeling type plate German - bar General approval without Ex approval: World (CE, RCM, EAC, FM, CSA, KCC) Process flanges for vertical differential pressure lines (half flange) Measuring range setting: Lower range value (max. 5 characters). Upper range value (max. 5 characters). Unit (mbar. bar. kPa. MPa. psi. ...) Example: -0.5 ... 10.5 psi

Siemens new pressure transmitter 7MF0340-1BM01-5AF2-Z

The SITRANS P320/P420 series pressure transmitter is a digital instrument with user interface

The characteristics of face friendliness and high precision. It can be accessed through local buttons and HART fieldbus communication
Line parameter setting.
The rich functionality makes this pressure transmitter highly suitable for the needs of factories. Although there are a large number of
The setting options are available, but the operation is still very simple.
Based on the self diagnostic function that complies with the NAMUR NE107 standard, SITRANS
The P320/P420 pressure transmitter is highly suitable for applications in the chemical industry. Powerful self diagnosis
The storage function of functions and process variables ensures that SITRANS P420 has the capability to meet
Embrace the digital age.
The 'remote secure debugging' feature significantly saves customers' time and costs because
The SIL safety function can be remotely opened and confirmed via SIMATIC PDM software. like this
Firstly, it can eliminate the time spent walking to the site and perform on-site operations through local buttons and display screens
The steps of operation.
Using the HART communication protocol for parameterization is very simple and fast because the entire process
Incorporating innovative EDD description files in the quick launch wizard.
The transmitter can be connected to various designed remote sealing components for use with high viscosity materials
Special applications such as materials.
Different models of SITRANS P320/P420 series pressure transmitters can be used to measure:
• Gauge pressure
• Absolute pressure
• Differential pressure
• Liquid level
• Volume flow rate
• Quality flow rate
Siemens new pressure transmitter 7MF0340-1BM01-5AF2-Z

point

The self diagnostic function complies with the NE107 recommended by NAMUR standards
SIL functional safety certificate compliant with IEC 61508 standard
SIL verification can be remotely implemented through SIMATIC PDM
Reduce the internal inductance value to achieve LI=0 in Ex explosion-proof applications
The step response time T63 for pressure type is 105 ms, and 135 ms for differential pressure type
• Minimal consistency error
• Extremely low temperature impact
• High long-term stability
Good quality and long lifespan
• Maintain high reliability under chemical and mechanical loads
• Suitable for corrosive and non corrosive gases, vapors, and liquids
• Rich diagnostic and simulation functions
Measurement components and electronic components are separated and do not require recalibration
The liquid receiving components are made of high-grade materials (such as stainless steel, Hastelloy, gold, etc.),
Monel, tantalum)
The continuous adjustable range of the transmitter is 0.01 bar~700 bar (0.15 psi~10153 psi)
• Parameter setting through 4 local buttons and HART fieldbus communication
application
The SITRANS P320/P420 series pressure transmitters can be applied to applications with chemical and
The industrial field of mechanical loads.
Pressure transmitters that meet Ex explosion-proof requirements can be installed in potential explosive hazardous environments in Zone 1
(Zone 1) or Zone 0 (Zone 0).
The transmitter can be connected to various remote transmission sealing components of different designs, suitable for materials with high viscosity
For special application scenarios.
The pressure transmitter can be operated through four local buttons via the HART fieldbus
Set communication parameters.
