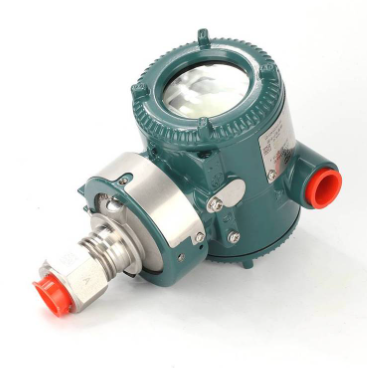

Yokogawa EJA530E-JDS4N-012EL/CF1/D1 Gauge Pressure Transmitter DPharp HART 4-20mA

MOQ:	1 Piece
Standard Packaging:	Antistatic bag with shock-proof foam, export-grade corrugated carton
Delivery Period:	3-5 working days for stock, 15-25 days for production
Payment Method:	T/T,L/C,PayPal,Western Union
Supply Capacity:	300 Pieces per Month

Details Information

Product Description

Detail Information

Brand Name

Yokogawa

Certification

ISO 9001:2015

Model Number

EJA530E-JDS4N-012EL/CF1/D1

Series:

EJA-E Series

Model:

EJA530E-JDS4N-012EL/CF1/D1

Measurement Type:

Gauge Pressure

Sensor Technology:

DPharp Digital Sensor

Capsule:

D Capsule

Measuring Range:

-0.1 To 50 MPa (-14.5 To 7200 Psi)

Reference Accuracy:

+/-0.055% Of Span

High Accuracy Option:

+/-0.04% (/HAC)

Long-Term Stability:

+/-0.1% URL Per 10 Years

Response Time:

90 Ms

Turndown Ratio:

100:1

Output Signal:

4-20 MA DC With HART 5/HART 7

Wetted Parts:

316L SS Connector, Hastelloy C-276 Diaphragm

Ambient Temperature:

-40 To 85 C (-30 To 80 C With Display)

Process Temperature:

-40 To 120 C

Power Supply:

10.5 To 42 V DC

Enclosure Rating:

IP66/IP67, NEMA 4X

Safety Certification:

IEC 61508 SIL 2 (single), SIL 3 (redundant)

Diagnostics:

40 Self-diagnostics With Back-Check

Hazardous Area Options:

NEPSI, FM, ATEX, CSA, IECEx

Highlight:

Yokogawa EJA530E Gauge Transmitter

DPharp Silicon Resonant Sensor

HART 4-20mA Pressure Transmitter

Product Description

Yokogawa EJA530E Gauge Pressure Transmitter (EJA530E-JDS4N-012EL/CF1/D1)

The EJA530E-JDS4N-012EL/CF1/D1 is a Yokogawa EJA-E series intelligent gauge pressure transmitter. It uses Yokogawa’s DPharp digital sensing technology and delivers a reference accuracy of ±0.055%.

Model Code Breakdown

Code	Meaning
EJA530E	EJA-E series, in-line mounted gauge pressure transmitter
J	Output: 4-20 mA DC with HART 5 / HART 7 digital communication
D	D capsule; range −0.1 to 50 MPa (−14.5 to 7200 psi)
S	Wetted parts: 316L stainless steel process connector, Hastelloy C-276 diaphragm
4	Process connection code (thread specification)
N	Installation / process connection code
012EL	Electrical connection / housing option
/CF1	Additional specification option (coating / special certification)
/D1	Additional specification option (display / unit configuration)

Note: optional codes /CF1 and /D1 should be confirmed against the official Yokogawa selection datasheet.

Core Technical Specifications

Parameter	Specification
Measurement Type	Gauge pressure (relative to local atmospheric pressure)
Measuring Range	−0.1 to 50 MPa (D capsule; extendable to 70 MPa with /HG)
Reference Accuracy	±0.055% of span (optional /HAC high accuracy ±0.04%)
Long-Term Stability	±0.1% URL per 10 years (standard)
Response Time	90 ms
Turndown Ratio	100:1 (D capsule, depending on range setting)
Output Signal	4-20 mA DC with HART digital signal
Ambient Temperature	−40 to 85°C (−30 to 80°C with integral display)
Process Temperature	−40 to 120°C (standard)
Power Supply	10.5 to 42 V DC (standard and flameproof, HART)
Enclosure Rating	IP66 / IP67, NEMA 4X

Functions & Certifications

Item	Detail
Safety Certification	IEC 61508 SIL 2 (single use), SIL 3 in redundant configuration
Diagnostics	40 self-diagnostic checks including patented Back-Check technology
Display & Setup	Integral display shows measured value, alarm codes and bar graph; configurable via BRAIN terminal or HART 475
Hazardous Area Options	NEPSI, FM, ATEX, CSA, IECEx (depend on option code)

Applications

Suitable for accurate gauge pressure measurement in oil and gas, petrochemical, chemical, power and general process industries.
