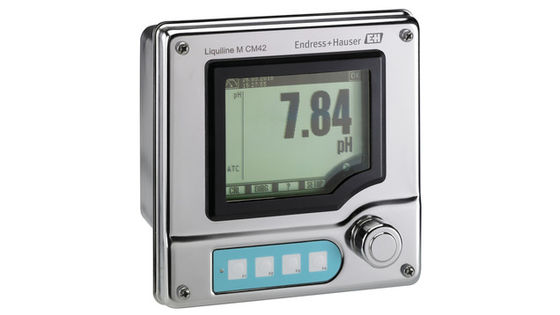

CM42 E&H Instrument , 1 Channel Endress Hauser Liquiline CM42 Two Wire

CM42-MAA000EAZ00 1-channel transmitter Liquiline M Two-wire field device

Description:

Manufacturer : Endress+Hauser

Product No. : CM444-2PL8/0

Product type : 4-channel Transmitter Liquiline

Universal four-wire multichannel controller Field device

Shipping weight : 10 Kg

Additional Informaiton:

Two-wire field device for hazardous and non-hazardous area use in chemicals, life sciences and food
Liquiline M CM42 is the robust transmitter for pH/ORP, conductivity or oxygen measurement in all process applications. It is the best choice for demanding environments be it hygienic applications, hazardous areas or functional safety areas.

Benefits
Simple commissioning with quick setup and navigator

The Memosens technology allows plug & play with pre-calibrated Memosens sensors

Less storage thanks to modular design

Predictive maintenance system detects when a sensor has to be cleaned, calibrated or replaced

Show less

Field of application

The Liquiline CM42 transmitter is suitable for all process applications, for example in these industries and their utilities:

Chemicals

Food & Beverages

Life Sciences

Power & Energy

Oil & Gas

Primaries & Metal

Liquiline CM42 features the following protocols and interfaces:

0/4...20 mA

HART

PROFIBUS PA

FOUNDATION Fieldbus

With its international explosion protection approvals, such as IECEx, ATEX, FM, CSA, TIIS and NEPSI, the transmitter is suitable for hazardous area use.

Show less


Features and specifications

Oxygen
ORP / Redox
pH
Conductivity
Measuring principle
Amperometric oxygen measurement

Application

Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

Characteristic
Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

Measuring principle
Connection of analog or digital Memosens sensors

Design
Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
Liquiline is developed acc. to the international safety standard IEC 61508

Material
Plastic or stainless steel housing with EPDM sealings

Dimension
Plastic housing:
144 x 144 x 148 mm
5.67 x 5.67 x 5.83 inch
Stainless Steel:
174 x 174 x 134 mm
6.85 x 6.85 x 5.28 inch

Input
One or two channel transmitter (with one reference connection)

Output
1/2 x 4 to 20 mA, HART, Profibus PA, FF
Additional second output possible, also later
