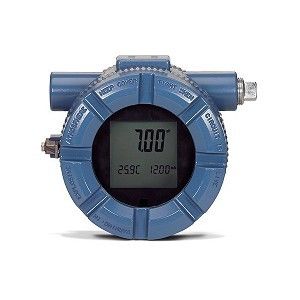

Emerson Rosemount Explosion Proof Transmitter

Name: Emerson Rosemount Explosion Proof Transmitter
Brand: Emerson
SKU: 5081-P-HT-20-73
Rating: 4.9 (188 reviews)

Large Image : Emerson Rosemount Explosion Proof Transmitter

Product Details:

Place of Origin:	Singapore
Brand Name:	Emerson
Certification:	ROHS
Model Number:	5081-P-HT-20-73

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable

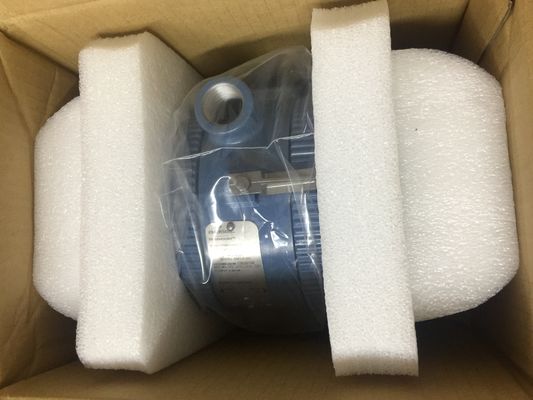

Packaging Details:	carton
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	1~1000pcs

Contact Now

Detailed Product Description

Material:	Plastic&metal	Origin:	Singapore
Conduit Openings:	3/4-in NPT	Ambient Temperature:	-4 To 149°F (-20 To 65°C)
Storage Temperature:	-22 To 176°F (-30 To 80°C)	Relative Humidity:	0 To 95% (non-condensing
Weight/Shipping Weight:	10 Lb/11 Lb (4.5/5.0 Kg)	Temperature Resolution:	0.1°C
High Light:	Emerson Rosemount Explosion Proof Transmitter , NPT Explosion Proof Transmitter , 3 4 in Explosion Proof Transmitter

Emerson Rosemount 5081 Explosion-Proof Transmitter 5081-P-HT-20-73

Product No. : 5081-P-HT-20-73

Product type : pH/ORP Transmitter

5081 : SMART two-wire microprocessor transmitter

P : pH/ORP

HT : Analog 4-20 mA output with superimposed HART digital signal

20 : Infrared remote controller included

73 - Agency approvals : ATEX approved intrinsically safe (when used with appropriate and safety barrier)

Weight : 4.5 Kg

Shipping weight : 6 Kg

Specification:

The Model 5081 family of transmitters can be used to measure pH, ORP, conductivity (using either contacting or toroidal sensors), resistivity, oxygen (ppm and ppb level), free chlorine, total chlorine, and ozone in a variety of process liquids.

Enclosure:

Cast aluminum containing less than 6% magnesium, with epoxy polyester coating. NEMA 4X (IP65) and NEMA 7B. Neoprene O-ring cover seals.

Dimensions:

See Drawing

Conduit Openings:

3/4-in NPT

Ambient Temperature:

-4 to 149°F (-20 to 65°C)

Storage Temperature: -22 to 176°F (-30 to 80°C)

Relative Humidity:

0 to 95% (non-condensing

Weight/Shipping Weight: 10 lb/11 lb (4.5/5.0 kg)

Display: Two-line LCD; first line shows process variable (pH, ORP, conductivity, % concentration, oxygen, ozone, or chlorine), second line shows process temperature and output current. For pH/chlorine combination, the second line can be toggled to show pH. Fault and warning messages, when triggered, alternate with temperature and output readings.

First line: 7 segment LCD, 0.8 in. (20 mm) high.

Second line: 7 segment LCD, 0.3 in. (7mm) high.

Display board can be rotated 90 degrees clockwise or counterclockwise.

During calibration and programming, messages and prompts appear in the second line.

Temperature resolution: 0.1°C

Hazardous Location Approval: For details, see specifications for the measurement of interest.

RFI/EMI: EN-61326

Digital Communications:

For details, see specifications for the measurement of interes

Common Models:

1056-01-25-38-AN	5081-P-HT
1056-01-20-38-AN	400-12-36-60
1056-01-22-38-AN	23550-00
1056-03-22-32-AN	24091-02
1057-02-20-32-42	400-11
1057-02-20-30-40	142-03-14-54
228-03-20-54-61	140-54
3900-1-10	23730-00
3900-2-10	23731-00
396P-02-10-55	9310120
396P-02-10-55-41	23724-00
389-01-10-54	400-13-54-50
389-01-10-55	400-12-54-50
389-02-10-54	400VP-11
499ADO-54-VP	24263-00
5081-C-HT-21-67	24091-00
