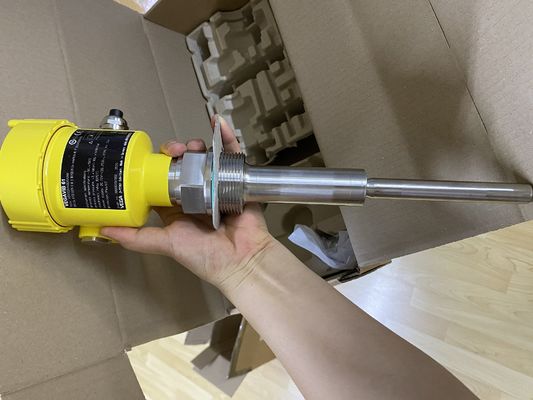

VEGAVIB 61 Vibrating Level Switch For Granular Bulk Solids VB61.GXAGDRAMX

Name: VEGAVIB 61 Vibrating Level Switch For Granular Bulk Solids VB61.GXAGDRAMX
Brand: vega
SKU: VB61.GXAGDRAMX
Rating: 5 (124 reviews)

MOQ:	1
Price:	negotiable
Standard Packaging:	carton
Delivery Period:	on request
Payment Method:	T/T
Supply Capacity:	1~1000pcs

Details Information

Product Description

Detail Information

Place of Origin

Germany

Brand Name

vega

Certification

ROHS

Model Number

VB61.GXAGDRAMX

Housing Material:

Plastic,Aluminium,Stainless Steel

Protection Rating:

IP66/IP68 (0,2 Bar)

Origin:

Germany

Output:

Relay (DPDT)

Ambient Temperature:

-40 ... 80 °C

Model:

VB61.GXAGDRAMX

Products Name:

Vibrating Level Switch

Warranty:

12 Months

Highlight:

VEGAVIB vibrating level switch

VB61 vibrating level switch

relay vega 61 level sensor

Product Description

VEGAVIB 61 Vibrating Level Switch For Granular Bulk Solids VB61.GXAGDRAMX

Model: VB61.GXAGDRAMX

Product Name: Vibrating Level Switch

Origin: Germany

Application area

It detects the limit level reliably and with millimetre accuracy directly at the mounting position. The smooth surface of the vibrating rod, without sharp corners or edges, prevents bulk material from getting stuck or jammed and is easy to clean.

The VEGAVIB 61 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB 61 detects reliably and accurately the min. or max. limit level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean.

Your benefit

Low maintenance costs

Minimum time and cost expenditure thanks to simple setup without medium

Reliable function through product-independent switching point

Technical specifications

Measuring range - Distance

Process temperature

-50 ... 250 °C

Process pressure

-1 ... 16 bar

Version

Standard

Detection of solids in water

Materials, wetted parts

316L

Threaded connection

≥ G1, ≥ 1 NPT

Flange connection

≥ DN 32, ≥ 1½"

Hygenic fittings

Clamp ≥ 1½" - DIN32676, ISO2852

Slotted nut ≥ 2", DN50 - DIN 11851

Varivent ≥ DN25

hygienic fitting F40 with compression nut

Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A

Hygienic fittings ≥ DN25 - DIN11864-1-A

Hyg. clamp connection DIN11864-3-A; DN50 Rohr ø53

Hygienic fittings ≥ DN50 pipe ø70 - DIN11864-1-A

Seal material

no media contact

Housing material

Plastic

Aluminium

Stainless steel (precision casting)

Stainless steel (electropolished)

Protection rating

IP66/IP68 (0,2 bar)

IP66/IP67

IP66/IP68 (1 bar)

Output

Relay (DPDT)

Contactless electronic switch

Transistor (NPN/PNP)

Two-wire

NAMUR

Ambient temperature

-40 ... 80 °C

Common Models:

VEGA PS62.DXEAKFHWNAX	VEGA VEGAWELL72.XXAGAX2DHK
VEGA PS62.XXEAKFH8NAX	VEGA VEGAVIB63.XXAGCCKM
VEGA BR51.XXGEA1THDMBXS	VEGA VEGAVIB62.XXTGDCKM
VEGA SN62.XXAGHKMAX	VEGA VEGAVIB63.XXAGCCKM
VEGA SN63.XXAXHKMAX	VEGA VEGAVIB62.XXTGDCKM
BR65.XXFHMCHKMAX	VEGA PS68.XXEGD2BDMXX
BR51.XXFRA1GHDMBX	VEGA DIS61.CXKNA
VEGA FX61.XXAGC1HKMAX	VEGA FX61.UXCAE2HANAX L=650mm
VEGA SWING63.XXGBVXPR	VEGA FX61.UXCAE2HANAX L=1750mm
VEGA CP65.XXKGDRKMX	VEGA BR64.XXGG1DHKMXX
VEGA CP65.XXKGDRKMX	VEGA CP64.XXFGATKMX L=4000
VEGA CP62.XXAGARKMX	VEGA BR65.XXFHMCHKMAX
VEGA CP67.XX1GDRKMX	VEGA BR51.XXFRA1GHDMBXS
VEGA VB62.XXTGCRKMX	VEGA PS67.XXBXXHKMXX
VEGA SN65.XXBASVDMXX	VEGA PS68.XXEGD2HKMXX
VEGA BR51.XXGEA1THDMBXS	VEGA BR52.XXEV1DHCMAH
VEGA SN65.XXAFPVDMXX	VEGA BR55.XXFHMCHKMAEX
VEGA DF65.XX11A7DHAMXX7	VEGA BR51.XXFRA1GHDMBXS
VEGA PS68.XXEGD2HKMAX	VEGA VB61.LXAGCRAMX
VEGA SN62.XXAGHKMXX	VEGA VB63.LXAGCRAMX
VEGA BR54.XXBF1FHKNAE	VEGA FX62.DXAGD1HDMXX
VEGA PS63.XXNFEHAMAX	VEGA SN62.XXANHKNAX
VEGA SN62.xxaghkmxx	VEGA WE61.XXANDRANX
VEGA SWING63.CAAPVXPZ	VEGA BR53.XXGVXUHAMAS
VEGA CL66.XXNGDHKMAX L=3300MM	VEGA FX61.XXCAK2HBNXX
