PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX

PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX
PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX

Large Image :  PVDF VEGA Level Meter , Ultrasonic Vega Level Measurement SON62.XXAGHKNXX

Product Details:
Place of Origin: GERMANY
Brand Name: VEGA
Model Number: SON62.XXAGHKNXX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTON
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 500+pcs+on stock
Detailed Product Description
Measuring Range - Distance: 8 M Process Temperature: -40 ... 80 °C
Process Pressure: -0.2 ... 2 Bar Accuracy: ± 4 Mm
Materials, Wetted Parts: PVDF Threaded Connection: ≥ G2, ≥ 2 NPT
Ambient Temperature: -40 ... 80 °C
High Light:

8m VEGA Level Meter

,

PVDF VEGA Level Meter

,

Ultrasonic Vega Level Measurement

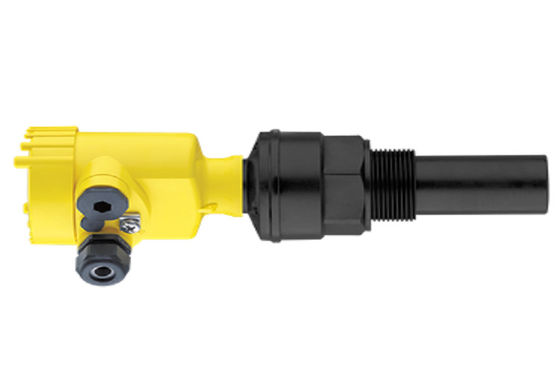

VEGA SON62.XXAGHKNXX Ultrasonic Sensor For Continuous Level Measurement







VEGASON 62
Ultrasonic sensor for continuous level measurement
Measures liquids up to 8 m and bulk solids up to 3.5 m away



Application area
Extensive selection of electronics, housings, approvals. Process fittings: G2 or 2 NPT

The VEGASON 62 is an ultrasonic sensor for continuous level measurement of liquids and bulk solids. Typical applications are the measurement of liquids in storage vessels or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or silos. Application areas can be found in all industries. The non-contact measuring principle is unaffected by product features and allows a setup without medium.



For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.


Your benefit

Price-favourable solution for simple applications
Maintenance-free operation through non-contact measuring principle
Reliable measurement independent of product features


Technical specifications

Measuring range - Distance
8 m
Process temperature
-40 ... 80 °C
Process pressure
-0.2 ... 2 bar
Accuracy
± 4 mm
Materials, wetted parts
PVDF
Threaded connection
≥ G2, ≥ 2 NPT
