25 Bar VEGA Level Meter , 80 GHz Vegapuls 64 Radar Sensor

Name: 25 Bar VEGA Level Meter , 80 GHz Vegapuls 64 Radar Sensor
Brand: VEGA
SKU: PS64.AXFFHIHXKMXXX
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (134 reviews)

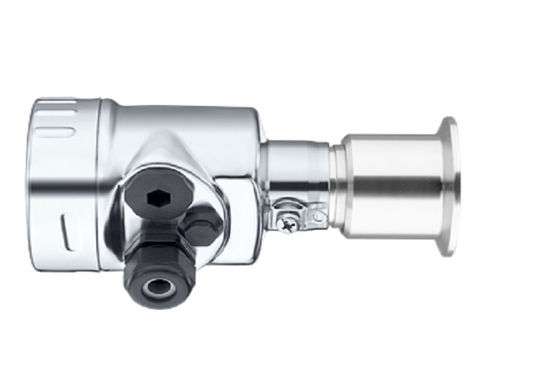

Large Image : 25 Bar VEGA Level Meter , 80 GHz Vegapuls 64 Radar Sensor

Product Details:

Place of Origin:	GERMANY
Brand Name:	VEGA
Certification:	rohs
Model Number:	PS64.AXFFHIHXKMXXX

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	CARTON
Delivery Time:	Negotiable
Payment Terms:	T/T
Supply Ability:	500+pcs+on stock

Contact Now

Detailed Product Description

Measuring Range - Distance:	30 M	Process Temperature:	-196 ... 200 °C
Process Pressure:	-1 ... 25 Bar	Accuracy:	± 1 Mm
Frequency:	80 GHz	Beam Angle:	≥ 3°
Threaded Connection:	≥ G¾, ≥ ¾ NPT	Origin:	Germany
High Light:	30m VEGA Level Meter , 25 bar VEGA Level Meter , 80 GHz vegapuls 64 radar sensor

VEGAPULS 64- PS64.AXFFHIHXKMXXX Radar sensor for continuous level measurement of liquids

VEGAPULS 64

Radar sensor for continuous level measurement of liquids

All-round radar instrument with 80 GHz – the frequency of the future

Application area

Special advantages are the small process fittings for small tanks or tight spaces. The very good signal focusing allows use in vessels with many internal installations.

The VEGAPULS 64 is a sensor for continuous level measurement of liquids. With small tanks or in case of narrow space the small process fittings offer special advantages. The very good signal focusing enables the use in vessels with many installations such as e.g. stirrers and heating spirals.

Your benefit

Exact measuring results independent of process conditions

High plant availability, because wear and maintenance-free

Maintenance-free operation through non-contact measuring principle

Technical specifications

Measuring range - Distance

30 m

Process temperature

-196 ... 200 °C

Process pressure

-1 ... 25 bar

Accuracy

± 1 mm

Frequency

80 GHz

Beam angle

≥ 3°
