61 VEGA Level Meter , 2 Bar Vega Ultrasonic Level Transmitter 61-SN61.XXAGHKMXX

MOQ:	1
Price:	Negotiable
Standard Packaging:	CARTON
Delivery Period:	Negotiable
Payment Method:	T/T
Supply Capacity:	500+pcs+on stock

Details Information

Product Description

Detail Information

Place of Origin

GERMANY

Brand Name

Certification

Model Number

SN61.XXAGHKMXX

Measuring Range - Distance:

Process Temperature:

-40 ... 80 °C

Process Pressure:

-0.2 ... 2 Bar

Accuracy:

± 4 Mm

Materials, Wetted Parts:

≥ G1½, ≥ 1½ NPT

Explosion Protection:

Intrinsic Safety "i"

SIL Qualification:

Model:

SN61.XXAGHKMXX

Highlight:

61 VEGA Level Meter

2 bar Vega Ultrasonic Level Transmitter

SIL2 Vega Ultrasonic Level Transmitter

Product Description

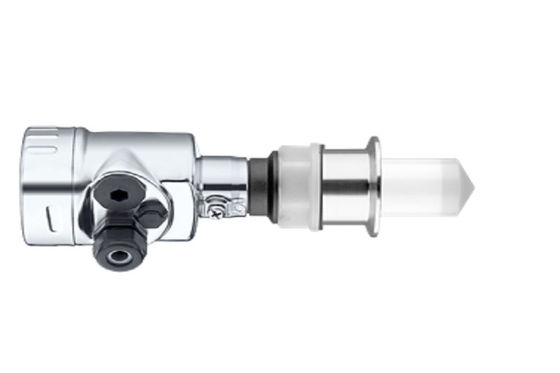

VEGASON 61-SN61.XXAGHKMXX Ultrasonic sensor for continuous level measurement

Part Number: SN61.XXAGHKMXX

Product Name: Ultrasonic sensor

Origin: Germany

Ultrasonic sensor for continuous level measurement

Measures liquids up to 5 m and bulk solids up to 2 m away

Application area

Extensive selection of electronics, housings, approvals. Process fittings: G1½ or 1½ NPT

The VEGASON 61 is an ultrasonic sensor for continuous level measurement of liquids or bulk solids. Typical applications are the measurement of liquids in storage tanks or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or open containers. The non-contact measuring principle is independent of product features and allows a setup without medium.

For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.

Your benefit

Price-favourable solution for simple applications

Maintenance-free operation through non-contact measuring principle

Reliable measurement independent of product features

Technical specifications

Measuring range - Distance

5 m

Process temperature

-40 ... 80 °C

Process pressure

-0.2 ... 2 bar

Accuracy

± 4 mm

Materials, wetted parts

PVDF

Threaded connection

≥ G1½, ≥ 1½ NPT

Important Terms:

1. Quote Validity 30 days

2. Offered product genuine and brand new.

3. Manufacturer name & country of origin: VEGA & Germany

4. Delivery lead time: 8-10 weeks

5. Shipping cost to us: We quote when goods ready for shipment

6. Shipping mode (Air/Sea): Air

Tags:

Products

MOQ:	1
Price:	Negotiable
Standard Packaging:	CARTON
Delivery Period:	Negotiable
Payment Method:	T/T
Supply Capacity:	500+pcs+on stock

Detail Information

Product Description

Detail Information

Place of Origin

GERMANY

Brand Name

VEGA

Certification

rohs

Model Number

SN61.XXAGHKMXX

Measuring Range - Distance:

5 M

Process Temperature:

-40 ... 80 °C

Process Pressure:

-0.2 ... 2 Bar

Accuracy:

± 4 Mm

Materials, Wetted Parts:

≥ G1½, ≥ 1½ NPT

Explosion Protection:

Intrinsic Safety "i"

SIL Qualification:

SIL2

Model:

SN61.XXAGHKMXX

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

CARTON

Delivery Time:

Negotiable

Payment Terms:

T/T

Supply Ability:

500+pcs+on stock

Highlight

61 VEGA Level Meter

2 bar Vega Ultrasonic Level Transmitter

SIL2 Vega Ultrasonic Level Transmitter

Product Description

VEGASON 61-SN61.XXAGHKMXX Ultrasonic sensor for continuous level measurement

Part Number: SN61.XXAGHKMXX

Product Name: Ultrasonic sensor

Origin: Germany

Ultrasonic sensor for continuous level measurement

Measures liquids up to 5 m and bulk solids up to 2 m away

Application area

Extensive selection of electronics, housings, approvals. Process fittings: G1½ or 1½ NPT

For this instrument, new radar sensors with connection housing VEGAPULS 11, 21 or 31, or radar sensors with fixed connected cable VEGAPULS C 11, C 21, C 22 or C 23 are available as alternative.

Your benefit

Price-favourable solution for simple applications

Maintenance-free operation through non-contact measuring principle

Reliable measurement independent of product features

Technical specifications

Measuring range - Distance

5 m

Process temperature

-40 ... 80 °C

Process pressure

-0.2 ... 2 bar

Accuracy

± 4 mm

Materials, wetted parts

PVDF

Threaded connection

≥ G1½, ≥ 1½ NPT

Important Terms:

1. Quote Validity 30 days

2. Offered product genuine and brand new.

3. Manufacturer name & country of origin: VEGA & Germany

4. Delivery lead time: 8-10 weeks

5. Shipping cost to us: We quote when goods ready for shipment

6. Shipping mode (Air/Sea): Air
