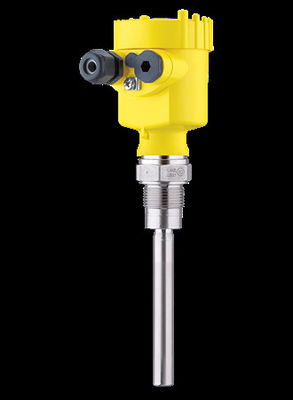

VEGAVIB 61 Vibrating level switch for granular bulk solids VB61.XXANCRAMX
Description:
VEGAVIB 61
Vibrating level switch for granular bulk solids
For granulated bulk solids from density 20 g/l – compact version
Application area
It detects the limit level reliably and with millimetre accuracy directly at the mounting position. The smooth surface of the vibrating rod, without sharp corners or edges, prevents bulk material from getting stuck or jammed and is easy to clean.
The VEGAVIB 61 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB 61 detects reliably and accurately the min. or max. limit level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean.
Your benefit
Low maintenance costs
Minimum time and cost expenditure thanks to simple setup without medium
Reliable function through product-independent switching point
Technical specifications
Measuring range - Distance
-
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 16 bar
Version
Standard
Detection of solids in water
Materials, wetted parts
316L
Threaded connection
≥ G1, ≥ 1 NPT
Flange connection
≥ DN 32, ≥ 1½"
Hygenic fittings
Clamp ≥ 1½" - DIN32676, ISO2852
Slotted nut ≥ 2", DN50 - DIN 11851
Varivent ≥ DN25
hygienic fitting F40 with compression nut
Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A
Hygienic fittings ≥ DN25 - DIN11864-1-A
Hyg. clamp connection DIN11864-3-A; DN50 Rohr ø53
Hygienic fittings ≥ DN50 pipe ø70 - DIN11864-1-A
Seal material
no media contact
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Relay (DPDT)
Contactless electronic switch
Transistor (NPN/PNP)
Two-wire
NAMUR
Ambient temperature
-40 ... 80 °C
