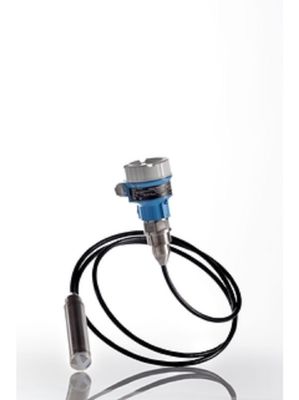

FMB52-AA21JA1FGJ15RGJB3A+AA Hydrostatic Level Measurement Deltapilot FMB52

FMB52-AA21JA1FGJ15RGJB3A+AA Hydrostatic Level Measurement Deltapilot FMB52

Approval:  AA  Non-hazardous area
Output:  2  4-20mA HART
Display, Operation:  1  LCD, push button on display/electronics
Housing:  J  F31 Alu, glass window
Electrical Connection:  A  Gland M20, IP66/68 NEMA4X/6P
Sensor Range:  1F 400mbar/40kPa/6psi gauge, 4mH2O/13ftH2O/160inH2O overload: 8bar/800kPa/120psi
Reference Accuracy:  G Standard

Calibration; Unit:  J  Customised pressure; see additional spec.
Probe Connection:  15  1000 mm ..... mm cable, PE
Process Connection:  RGJ  Thread ANSI MNPT1-1/2, 316L
Membrane Material:  B  AlloyC
Fill Fluid:  3  Synthetic oil, FDA

Seal:  A  FKM Viton
>Additional Operation Language:  AA  English
Details:Low range value: -420 mbar
            Upper range value: 420 mbar
            2nd value display: none
            Damping [s]: 2

Specs at a glance
Accuracy
Standard 0.2%
Optional 0.1%
Process temperature
PE cable: -10°C…70°C / 14°F…158°F
FEP cable: -10°C…80°C / 14°F…176°F
Pressure measuring range
100 mbar...10 bar
(1.5 psi...150 psi)
Process pressure / max. overpressure limit
40 bar (600 psi)
Main wetted parts
Alloy C
316L
Cable (PE/FEP)
optional coating AuPt
optional coating AuRh
Max. measurement distance
100 m (328 ft) H2O
Material process membrane
316L, AlloyC,
Gold-Rhodium
PE, FEP
Measuring cell
100 mbar...10 bar
(1.5 psi...150 psi)

Field of application
The Deltapilot FMB52 is a cable version including a fixed process connection. This device with the Contite measuring cell is typically used in the process and environmental industries. It is made for level measurement in liquid and paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems.
For level measurement.

• Process connections: Threads and flanges
• Temperature: With PE cable: -10 to +70°C (+14 to +158°F),
• with FEP cable: -10 to +80°C (14 to 176°F)
• Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O)
• Accuracy: ±0.2%, ±0.1% (option)
• International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval

Benefits

• Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects
• Modular concept for easy replacement of display or electronics
• Seamless and independent system integration (HART/PA/FF)
• Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus
• International usage thanks to a wide range of approvals
