MOQ: | 1 |
Price: | negotiable |
Standard Packaging: | standard carton packing |
Delivery Period: | on request |
Payment Method: | T/T |
Supply Capacity: | 0-1000pcs |

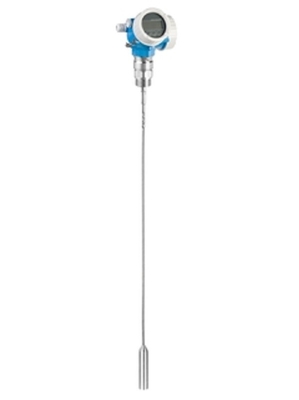

FMP57-AAACCANCA4AHJ+F3 Guided Radar Measurement Time-Of-Flight Levelflex FMP57
Approval: AA Non-hazardous area
Power Supply; Output: A 2-wire; 4-20mA HART
Display, Operation: C SD02 4-line, push buttons + data backup function
Housing: C GT20 dual compartment, Alu, coated
Electrical Connection: A Gland M20, IP66/68 NEMA4X/6P
Probe: NC 10000 mm ..... mm, rope 8mm PA>steel
Seal: A4 FKM Viton, -30...150oC/-22...302oF
Process Connection: AHJ NPS 4" Cl.150 RF, 316/316L flange ASME B16.5
>Calibration: F3 3-point linearity protocol observe minimum probe length, rod >=1000mm, rope >=1250mm
Details:Unit calibration: mm
Specs at a glance
Accuracy
Rod probe: +/- 2 mm (0.08 in)
Rope probe <= 15 m (49ft):
+/- 2 mm (0.08 in)
Rope probe > 15 m (49ft):
+/- 10 mm (0,39 in)
Process temperature
-40...+150 °C
(-40...+302 °F)
Process pressure / max. overpressure limit
Vacuum...16 bar
(Vacuum...232 psi)
Max. measurement distance
Rod:
4 m (13 ft) Min DK>1.4
Rope:
20 m...25 m (66 ft...82 ft) Min DK >1.4;
25 m...30 m (82ft...98 ft) Min DK >1.6;
30 m...45 m (98ft...148 ft) Min DK>1,9
Main wetted parts
Rod probe:
316Ti, 316L, PEEK, PPS
Rope probe:
304, 316, 316Ti, 316L, PEEK, PPS, PA
Field of application
Levelflex FMP57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. Providing rope probes up to a length of 45m the FMP57 is also suited to measurements in high silos. Levelflex FMP57 guided radar is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
Version with rod or rope probe.
Benefits
Common related models:
FTL31-AA4U2AAWBJ |
FTL31-AA4U2BAWSJ |
FMR50-AAACCABMGGF+LA |
CPS12-0NA2ESA |
CM42-MJA000EAZ00 |
FMU40-ARB2A2 |
FTL31-AA4U2BAWBJ |
FTM21-AA245A,L=500mm |
FTL31-AA4U3BAWSJ |
FTL31-AA4U2AAWBJ |
CPM223-MR8005 |
CPS16D-7AT2G |
CLS21-C1N3A |
FTL33-AA4N3AB1GJ+RM |
FTL31-AA4M3AAWBJ+HD |
Why choose GSI?
1. 100% original product, 100% quality assurance.
2. Varied payment methods.
We adopt T/T, western union and paypal and Currency in EURO,USD,RMB
3.SHIPPING:
We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
