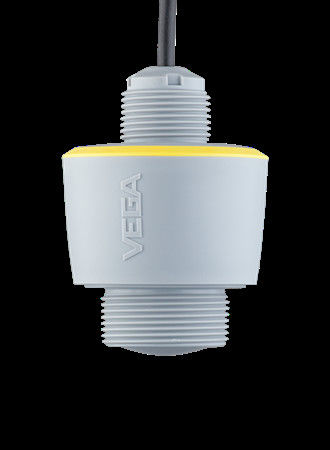

VEGAPULS C 21 Wired Radar Sensor For Continuous Level Measurement

Name: VEGAPULS C 21 Wired Radar Sensor For Continuous Level Measurement
Brand: VEGA
SKU: PSC21.XXXXXGAHB
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (107 reviews)

Large Image : VEGAPULS C 21 Wired Radar Sensor For Continuous Level Measurement

Product Details:

Place of Origin:	DE
Brand Name:	VEGA
Certification:	Rohs
Model Number:	PSC21.XXXXXGAHB

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Original packing
Delivery Time:	On request
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now

Detailed Product Description

HS Code:	90318080	Electronics:	Two-wire 4 ... 20 MA/HART
Cable Material / Length:	PUR / 5m (approx. 16ft)	Explosion Protection:	None
Certificate/norm:	Without	Software Version:	Latest Version
High Light:	VEGAPULS C 21 Wired Radar Sensor , Continuous Level Measurement Wired Radar Sensor , VEGAPULS C 21

VEGAPULS C 21 Wired radar sensor for continuous level measurement

ship approval	without
Thread process side / cable side	Thread G1½ / G1
Custom match	No

VEGAPULS C 21 Wired Radar Sensor For Continuous Level Measurement 0

VEGAPULS C 21

Wired radar sensor for continuous level measurement

For standard measurement tasks, IP66/IP68, Type 6P

scope of application

Axial cable outlet, measuring range up to 15 m, accuracy ±2 mm, 4 … 20 mA, HART, SDI-12 or Modbus output, Ex approval

VEGAPULS C 21 is the ideal sensor for non-contact level measurement in simple applications that require a high degree of protection. It is particularly suitable for use in water treatment, in pumping stations and stormwater overflow basins, for flow measurement in open channels and level monitoring. In bulk goods, the sensors are used in small bulk goods silos or open containers.

Your benefit

Exact measurement results regardless of medium, process and environmental conditions
Maintenance-free operation thanks to non-contact 80 GHz radar technology
High accuracy and reliability
